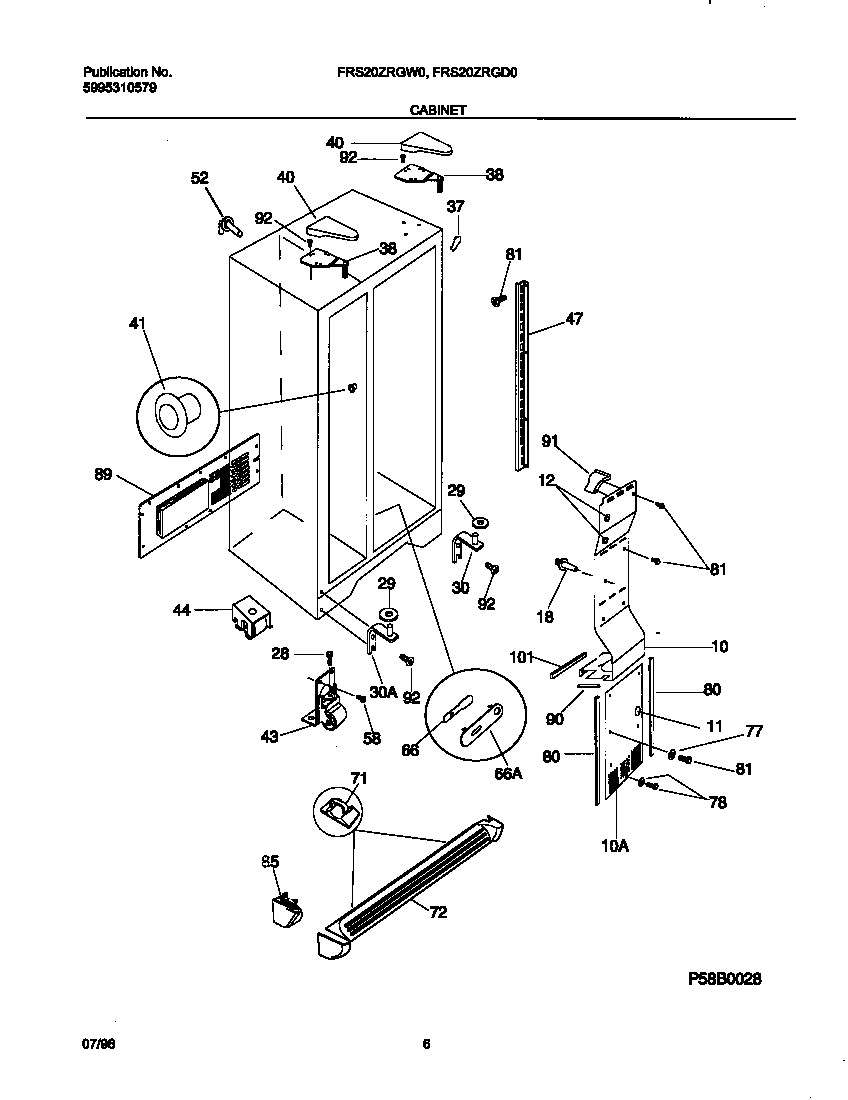

FRS20ZRGD0 04 – CABINET

FRS20ZRGD0 04 – CABINET

Written by

in

FRS20ZRGD0 04 – CABINET

Products

PositionProduct
*78763NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*78765WCI 218871201
*78769SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*78771WCI 5303322647
*78764SUPPORT-AIR DUCT CVR,1.83“ LONG
*78767WCI 218730800
*78774PLUG, BUTTON, CABINET LINER (NI)
*78772TOUCH, UP PAINT, ALMOND (NI)
*78770WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*78766WCI 218730700
*787685304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218748901
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30WCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38AWCI 218215221
38BWCI 218215223
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359614
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80BWCI 218249802
80AWCI 218154003
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 5303288947
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
