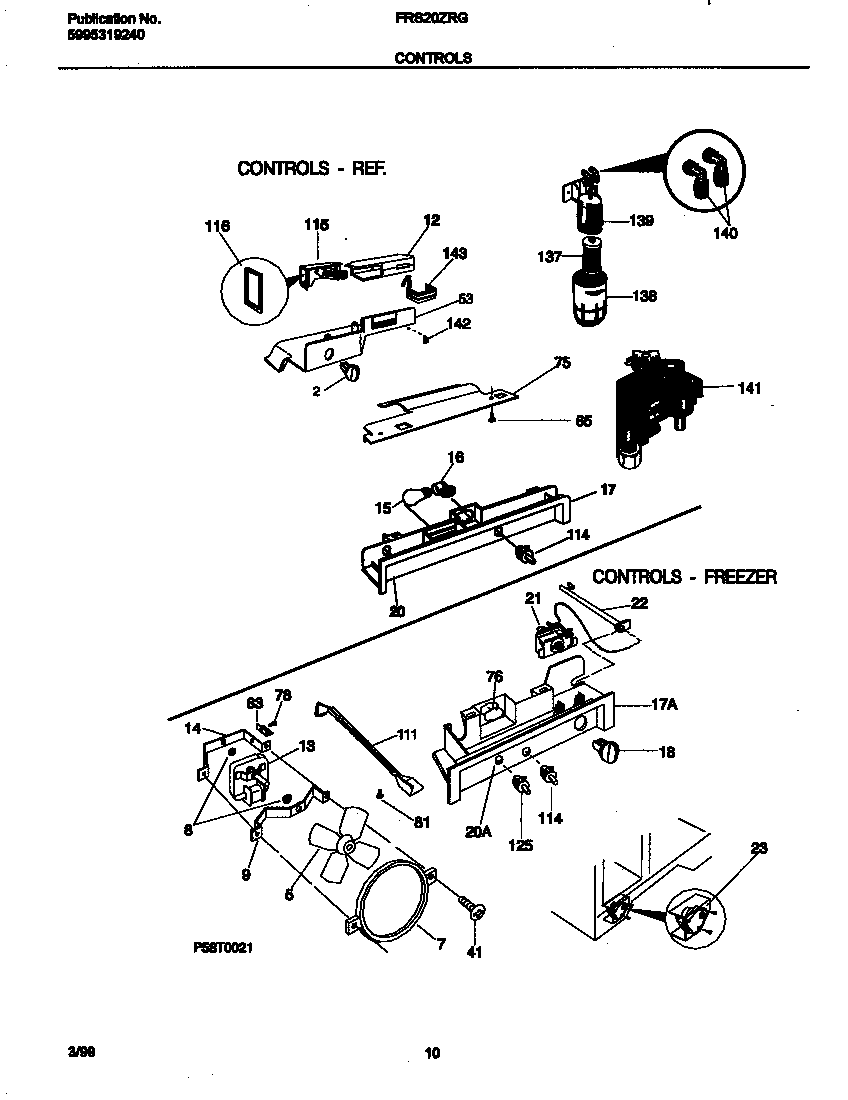

FRS20ZRGD3 06 – CONTROLS

FRS20ZRGD3 06 – CONTROLS

Written by

in

FRS20ZRGD3 06 – CONTROLS

Products

PositionProduct
*064235304455649 Frigidaire Refrigerator Screw
*06427WIRING HARNESS,FILTER HEATER
*06421WCI 218731102
*06424SHIELD-DEFROST TIMR,BTM
*06428218859701 Frigidaire Water Valve Single Solenoid
*06422COVER-DEFROST TIMER, TOP
*06429Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*06420215474201 Frigidaire Refrigerator Washer
*06426218710300 Frigidaire Refrigerator Water Filter Wrench
*06425NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17AWCI 5303321928
17CONTROL BOX, REFR
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
18WCI 5303308568
20WCI 5303321926
20WCI 5304405803
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809510
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141218832401 Frigidaire Water Inlet Valve
142WCI 218657701
143WCI 218696700
