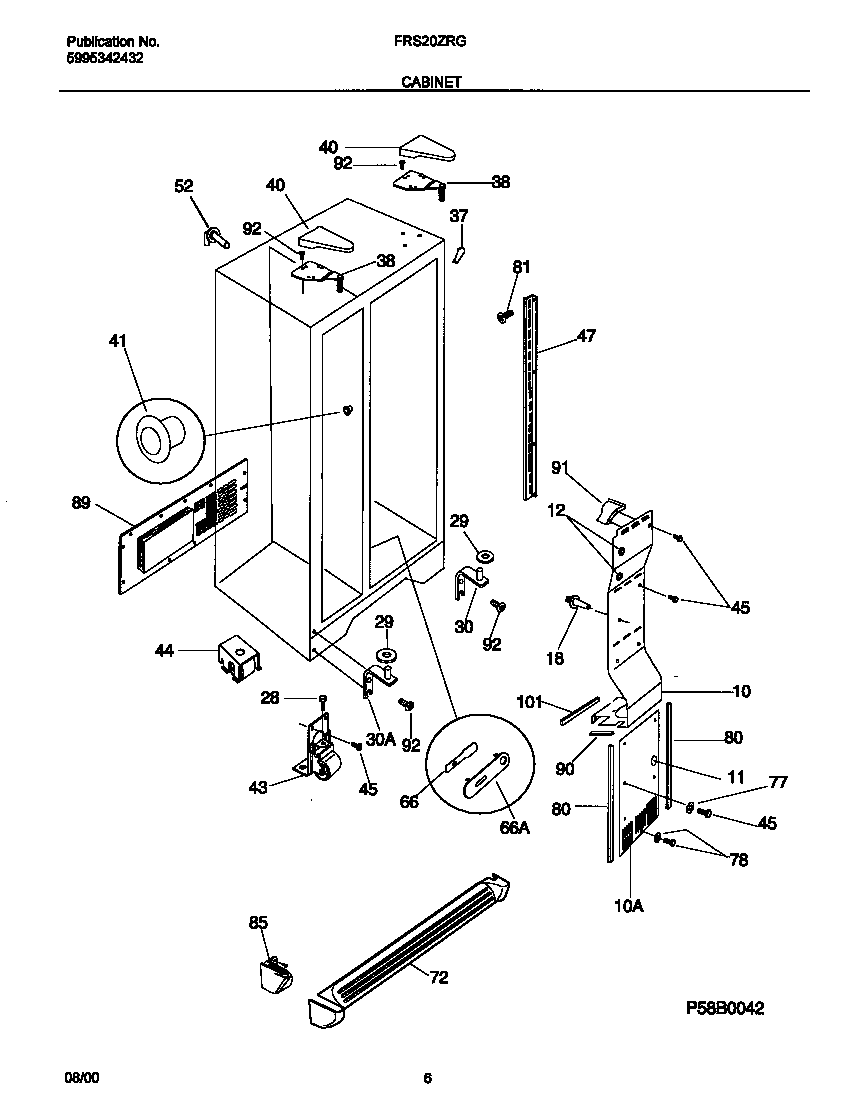

FRS20ZRGD9 04 – CABINET

Products

Position	Product
*24203	SUPPORT-AIR DUCT CVR,1.83“ LONG
*24205	WCI 218871201
*24209	WCI 218902101
*24204	WCI 215598900
*24208	WCI 5303322647
*24206	WCI 218979701
*24202	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*24213	PLUG, BUTTON, CABINET LINER (NI)
*24211	TOUCH, UP PAINT, ALMOND (NI)
*24207	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10A	WCI 218751303
10	WCI 218748901
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30B	WCI 218979601
30	WCI 218993701
30A	WCI 218993901
37	WCI 5303321082
38B	WCI 218215251
38A	WCI 218215249
40	WCI 5303318774
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
72	WCI 218359614
77	WASHER-NYLON,3/16 X 5/8 OD
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218922703
89	WCI 215741407
90	WCI 215022602
91	WCI 218964701
92	241710601 Frigidaire Refrigerator Screw
101B	WCI 218663103
101A	WCI 215305701
