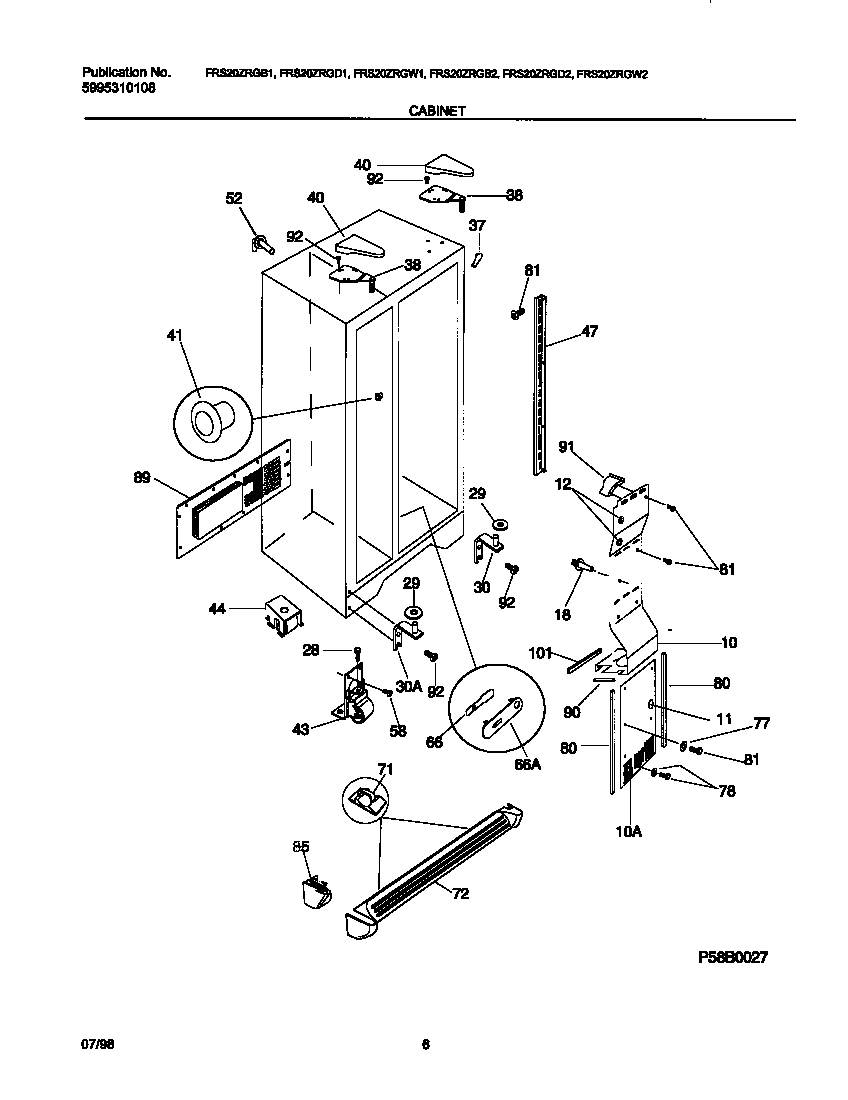

FRS20ZRGW2 04 – CABINET

FRS20ZRGW2 04 – CABINET

Written by

in

FRS20ZRGW2 04 – CABINET

Products

PositionProduct
*69363NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*69367WCI 218730800
*69366WCI 218871201
*69371WCI 218249802
*69373WCI 218836401
*69365WCI 215314301
*69369SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*69372WCI 5303322647
*69364SUPPORT-AIR DUCT CVR,1.83“ LONG
*69377PLUG, BUTTON, CABINET LINER (NI)
*69370WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*693765303321319 Frigidaire Refrigerator White Touch Up Paint
*693685304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218751301
10WCI 218748901
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218730700
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
