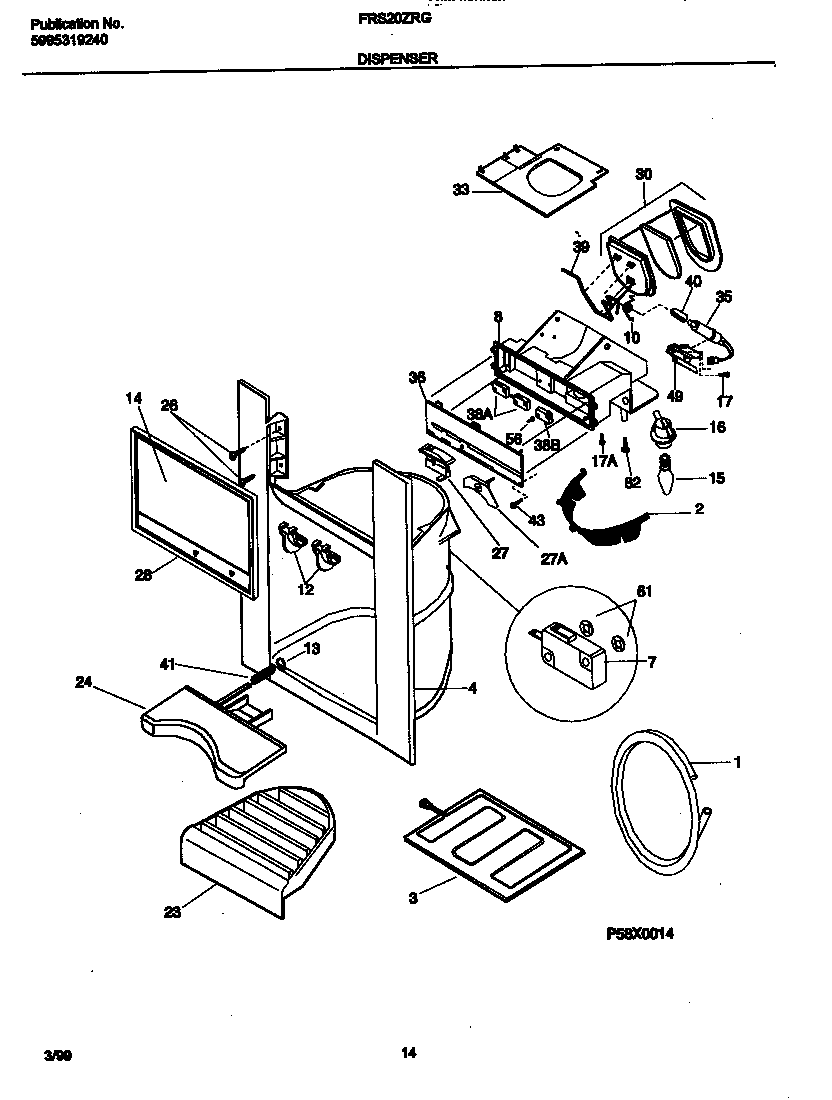

FRS20ZRGW3 08 – DISPENSER

Products

Position	Product
*06447	WCI 215781700
*06445	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
*06444	WCI 215294101
*06446	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
*06448	WCI 218863101
*06449	WCI 5300460947
2	WCI 218505301
3	WCI 215484300
4	WCI 218432101
7	WCI 218841901
8	WCI 218835701
10	WCI 218209800
12	WCI 218836201
13	WCI 215748101
14	WCI 218416153
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17A	WCI 215840700
17B	WASHER-FLAT
17	WCI 215794400
23	WCI 5303297844
24	WCI 218796501
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218700601
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740003
36	WCI 218835601
38	241689106 Frigidaire Refrigerator Micro Switch
38	WCI 218479900
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	SCREW (4)
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
