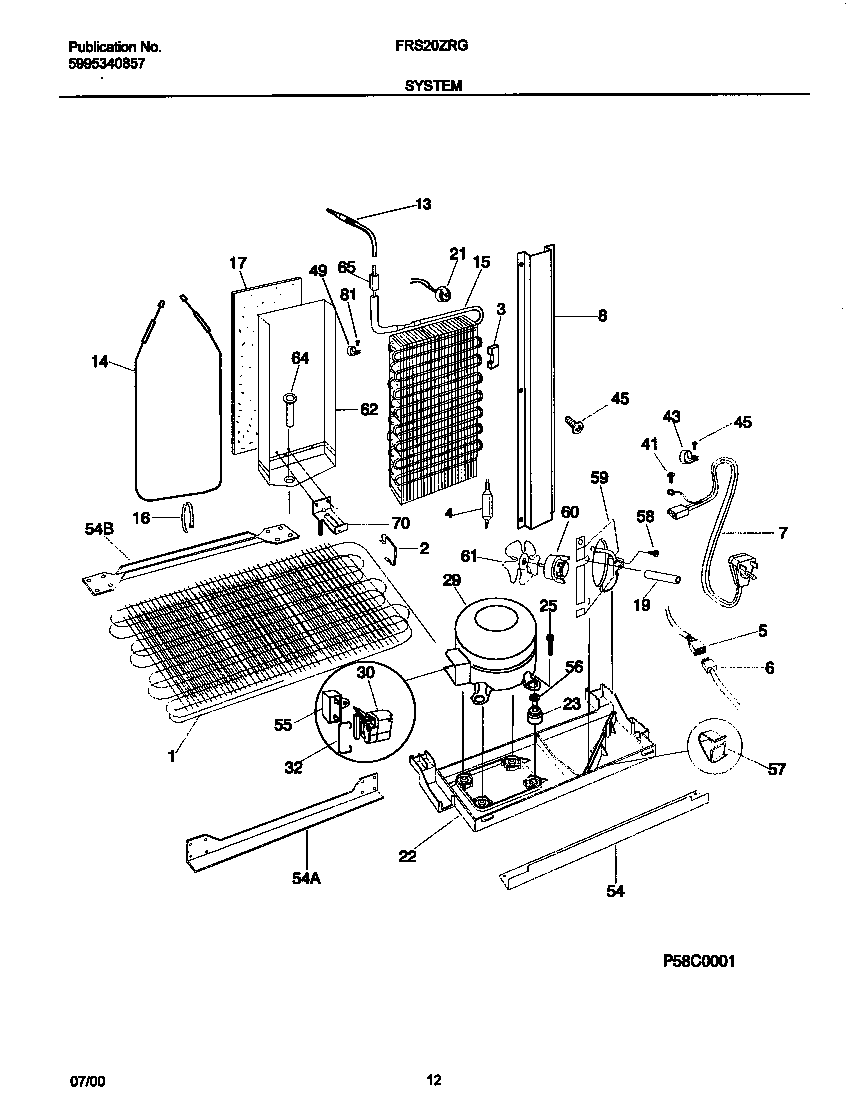

FRS20ZRGW8 07 – SYSTEMS

FRS20ZRGW8 07 – SYSTEMS

Written by

in

FRS20ZRGW8 07 – SYSTEMS

Products

PositionProduct
*04905WIRING HARNESS,REFR CONTROLS
*04911WCI 215732700
*04908TUBE-INLET (NOT ILLUSTRATED)
*04914WCI 5303917166
*049105308000133 Frigidaire Refrigerator Clamp
*04903SPACER TUBE
*04902SPACER-COND TUBE,BLACK
*04904WCI 5304406721
*04913WCI 218956801
*04907SCREW,HEX HD SER WSHR ,8-18 X 0.375
*04906WIRING HARNESS,FRZR CONTROLS
*04912WCI 218956701
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
