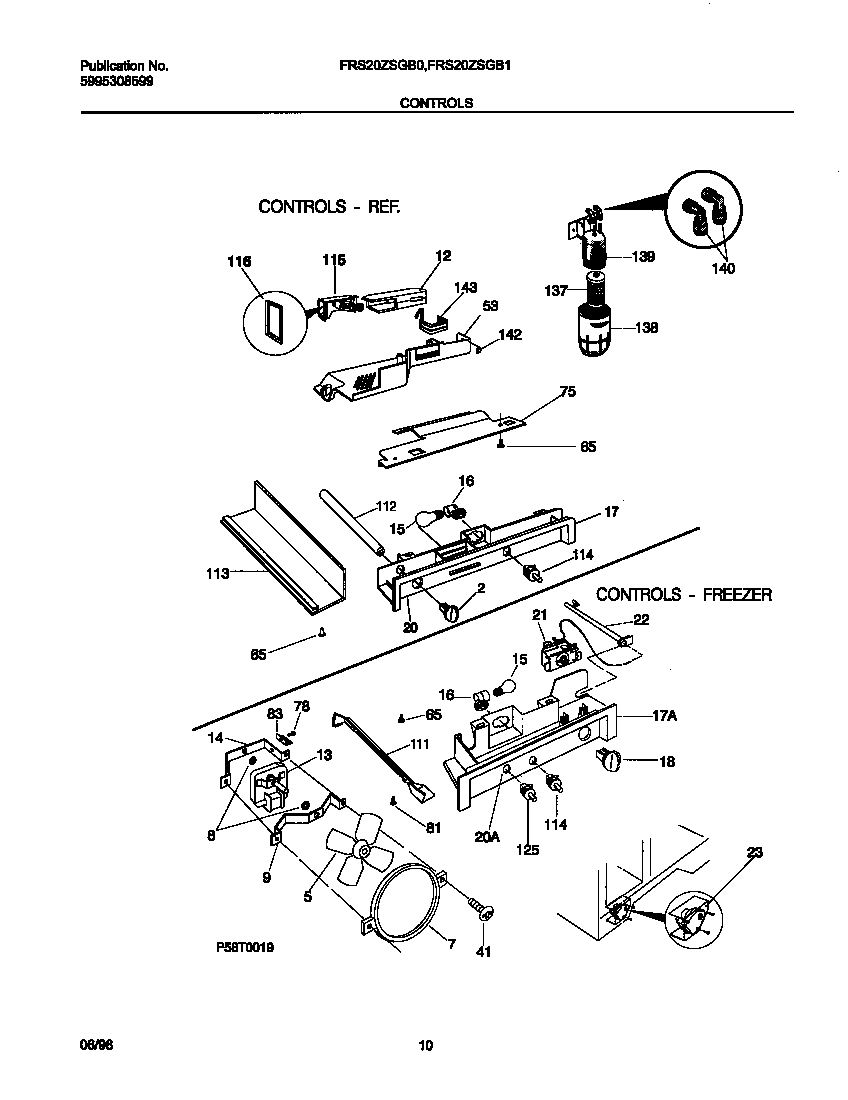

FRS20ZSGB1 06 – CONTROLS

Products

PositionProduct
*405865304455649 Frigidaire Refrigerator Screw
*40587SHIELD-DEFROST TIMR,BTM
*40584WCI 218731102
*40589WIRING HARNESS,FILTER HEATER
*40581215474201 Frigidaire Refrigerator Washer
*40585COVER-DEFROST TIMER, TOP
*40582SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*40583WCI 5303001260
*40580NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*40588218710300 Frigidaire Refrigerator Water Filter Wrench
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 218718402
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BWCI 215980800
17AWCI 5303321928
17WCI 218468702
18WCI 5303307882
20WCI 5303322426
20WCI 5303321927
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809508
65WCI 5303001361
75WCI 218465101
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011504
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141218859701 Frigidaire Water Valve Single Solenoid
142WCI 218657701
143WCI 218696700
