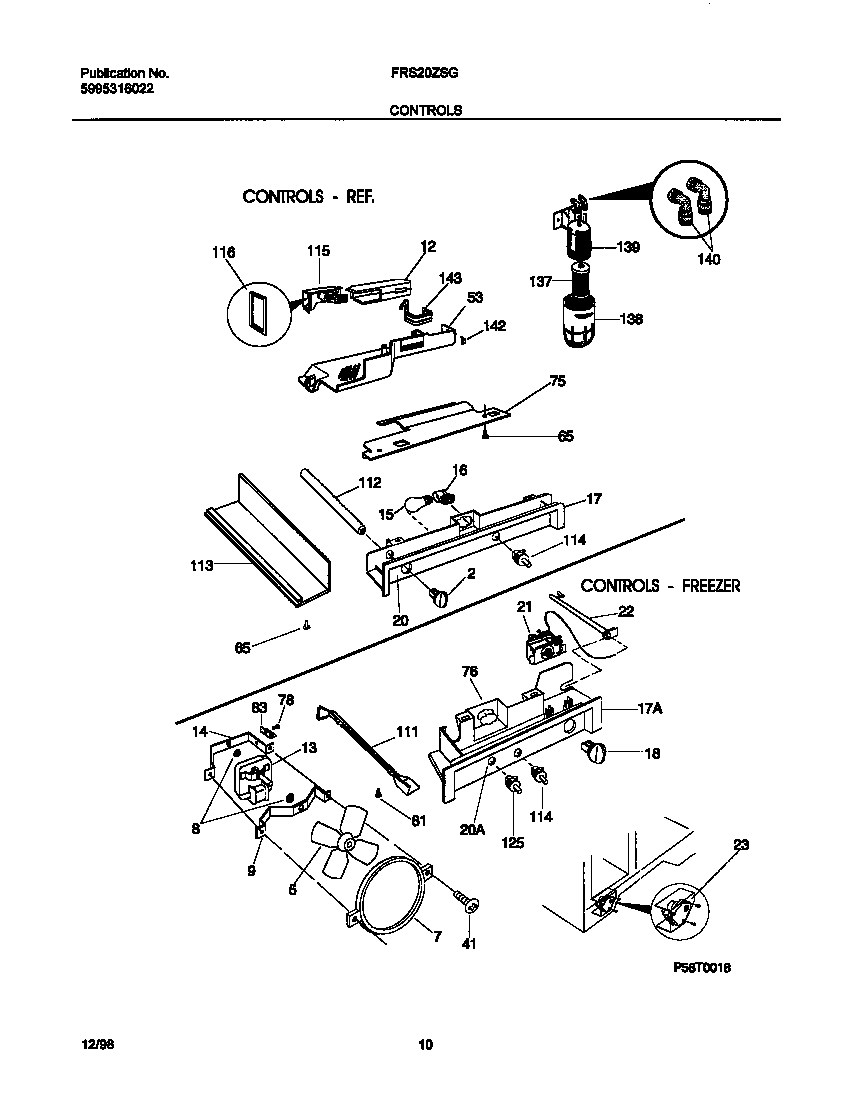

FRS20ZSGB3 06 – CONTROLS

Products

Position	Product
*51228	5304455649 Frigidaire Refrigerator Screw
*51229	SHIELD-DEFROST TIMR,BTM
*51226	WCI 218731102
*51231	WIRING HARNESS,FILTER HEATER
*51227	COVER-DEFROST TIMER, TOP
*51223	215474201 Frigidaire Refrigerator Washer
*51224	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*51225	WCI 5303001260
*51230	218710300 Frigidaire Refrigerator Water Filter Wrench
2	WCI 5303307883
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215809600
13	WCI 218718402
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17B	WCI 215980800
17A	WCI 5303321928
17	WCI 218468702
18	WCI 5303307882
20	WCI 5303322426
20	WCI 5303321927
21	WCI 5303300027
22	WCI 5303319683
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
53	WCI 215809508
65	WCI 5303001361
75	WCI 218465101
76	WCI 218225800
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303289024
112	WCI 215277101
113	COVER – DMPR ROD EXT
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011503
116	WCI 215011400
137	WCI 215334201
138	WCI 218657401
139	HOUSING-WTR FILTER
140	WCI 218518700
142	WCI 218657701
143	WCI 218696700
