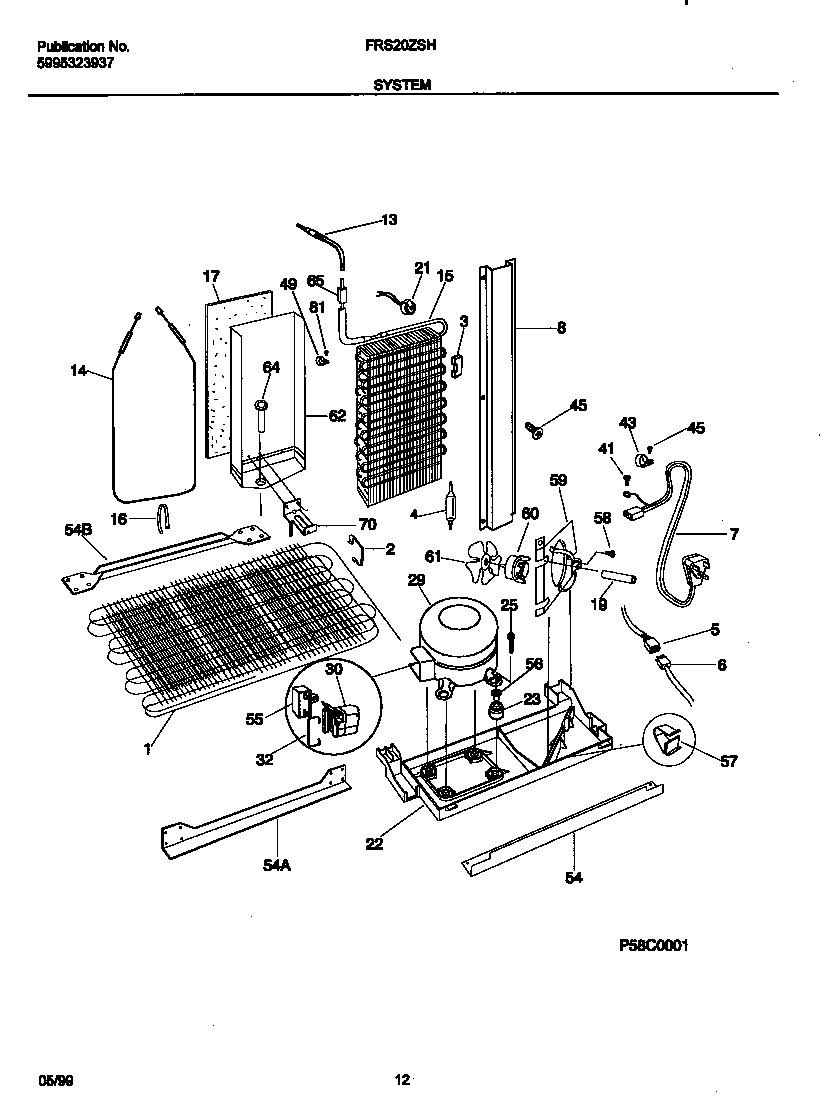

FRS20ZSHB0 07 – SYSTEM

FRS20ZSHB0 07 – SYSTEM

Written by

in

FRS20ZSHB0 07 – SYSTEM

Products

PositionProduct
*28469WIRING HARNESS,FILTER HEATER
*28472TUBE-INLET (NOT ILLUSTRATED)
*28467SPACER TUBE
*28466SPACER-COND TUBE,BLACK
*28474WCI 215004700
*28470WIRING HARNESS,FRZR CONTROLS
*28471SCREW,HEX HD SER WSHR ,8-18 X 0.375
*28468WIRING HARNESS,REFR CONTROLS
*28473WCI 215732700
*28475GROMMET, SILENCER (NOT ILLUSTRATED)
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WCI 218925201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
