FRS20ZSHB3 06 – CONTROLS

FRS20ZSHB3 06 – CONTROLS

Written by

in

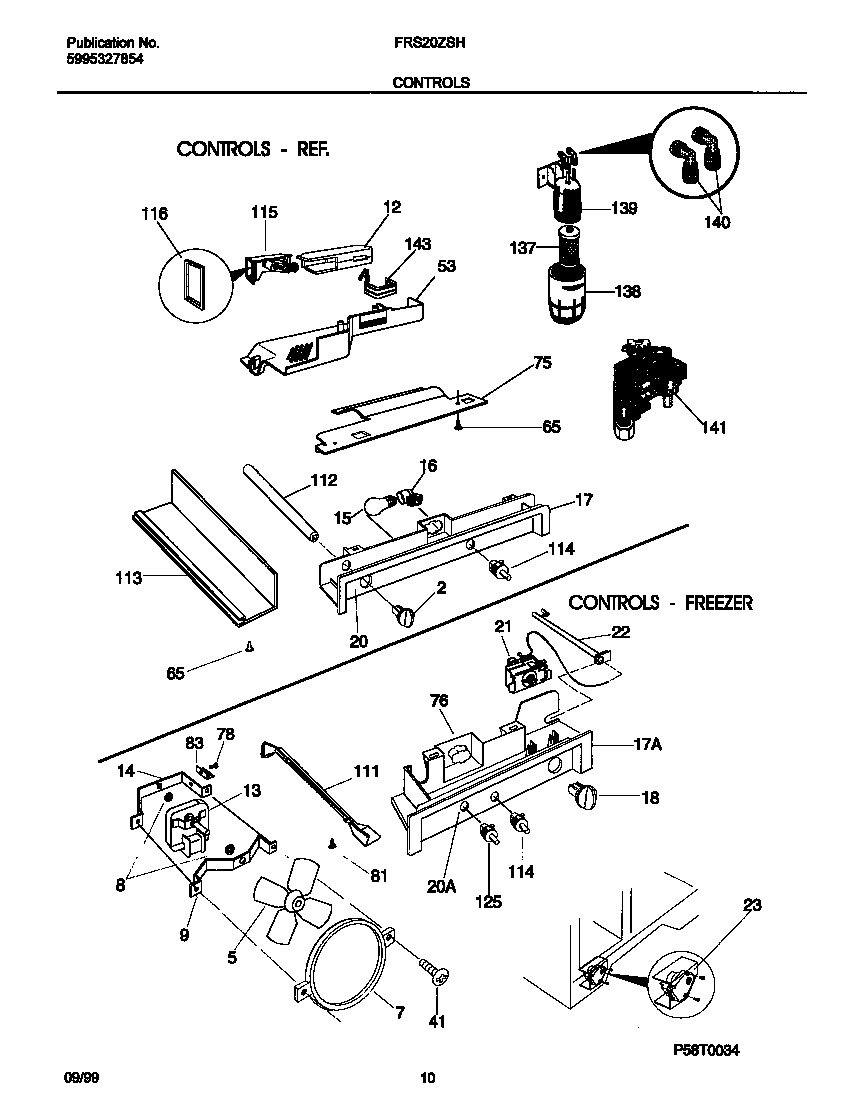

FRS20ZSHB3 06 – CONTROLS

Products

PositionProduct
*321805304455649 Frigidaire Refrigerator Screw
*32179COVER-DEFROST TIMER, TOP
*32184WIRING HARNESS,FILTER HEATER
*32181SHIELD-DEFROST TIMR,BTM
*32178WCI 218731102
*32177215474201 Frigidaire Refrigerator Washer
*32183Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*32182NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 218718402
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 218468702
17AWCI 5303321928
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
18WCI 5303307882
20WCI 5303321927
20WCI 5303322426
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809511
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
137WCI 215334201
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141218832401 Frigidaire Water Inlet Valve
143WCI 218696700
