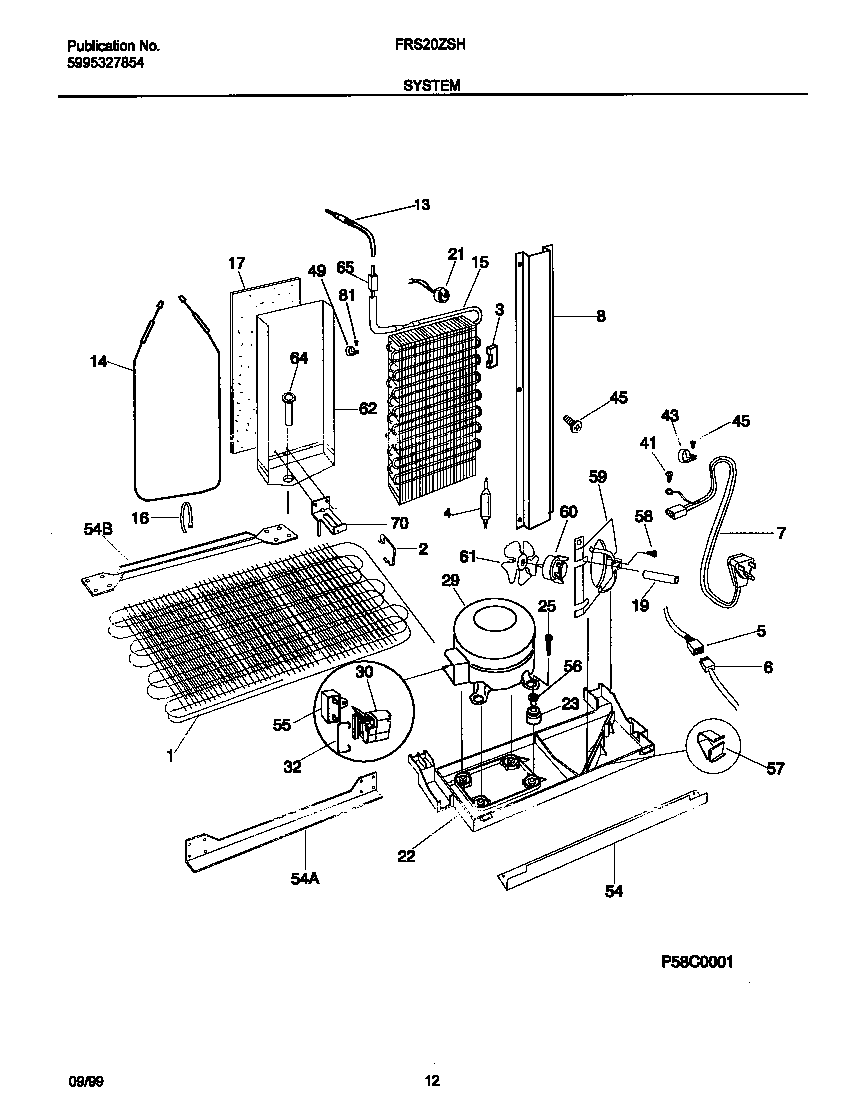

FRS20ZSHB3 07 – SYSTEM

FRS20ZSHB3 07 – SYSTEM

Written by

in

FRS20ZSHB3 07 – SYSTEM

Products

PositionProduct
*321945308000133 Frigidaire Refrigerator Clamp
*32186SPACER TUBE
*32187WCI 5304406721
*32192TUBE-INLET (NOT ILLUSTRATED)
*32188HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
*321965304455852 Frigidaire Refrigerator Screw
*32198WCI 218897001
*32195WCI 218769200
*32185SPACER-COND TUBE,BLACK
*32199WCI 215004700
*32197WCI 215732700
*32190WIRING HARNESS,FRZR CONTROLS
*32191SCREW,HEX HD SER WSHR ,8-18 X 0.375
*32189WIRING HARNESS,REFR CONTROLS
*32200GROMMET, SILENCER (NOT ILLUSTRATED)
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WIRING HARNESS,MACHINE COMPT ,W/SNUBBER CAP.
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289292
54WCI 5303289027
55WCI 218909902
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
