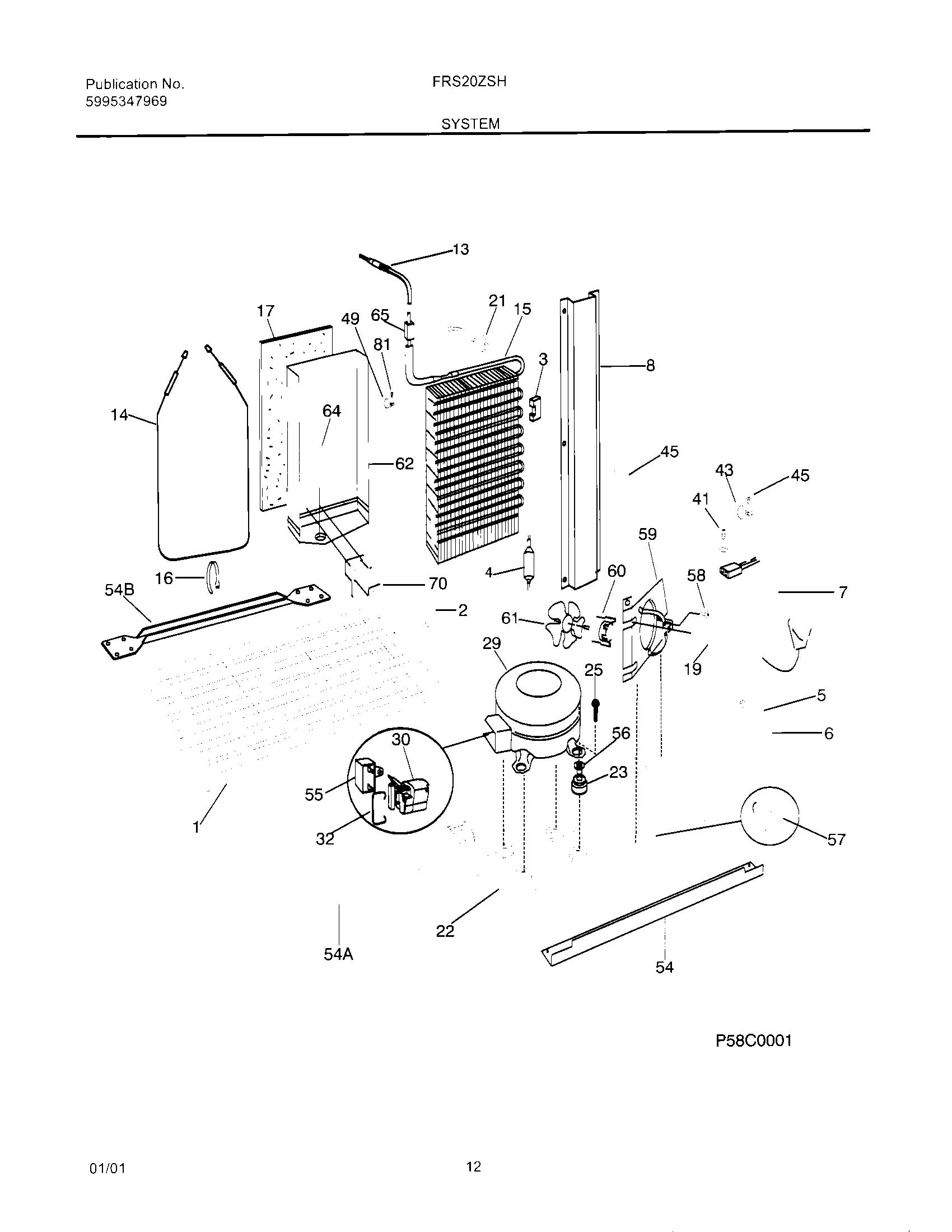

FRS20ZSHB4 13 – SYSTEM

FRS20ZSHB4 13 – SYSTEM

Written by

in

FRS20ZSHB4 13 – SYSTEM

Products

PositionProduct
NI5308000133 Frigidaire Refrigerator Clamp
NISPACER TUBE
NISPACER-COND TUBE,BLACK
NIWIRING HARNESS,FILTER HEATER
NIWIRING HARNESS,FRZR CONTROLS
NISCREW,HEX HD SER WSHR ,8-18 X 0.375
NIWCI 218679605
NIWCI 5304406721
NIWIRING HARNESS,REFR CONTROLS
NI5304455852 Frigidaire Refrigerator Screw
NIHOT TUBE REPAIR KIT, SERVICE
NIWCI 215004700
NIWCI 215732700
NIWCI 218769200
NIGROMMET, SILENCER (NOT ILLUSTRATED)
1WCI 218787700
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WIRING HARNESS,MACHINE COMPT ,W/SNUBBER CAP.
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169804 Frigidaire Refrigerator Defrost Heater
15WCI 218955801
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61WCI 5303289032
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
