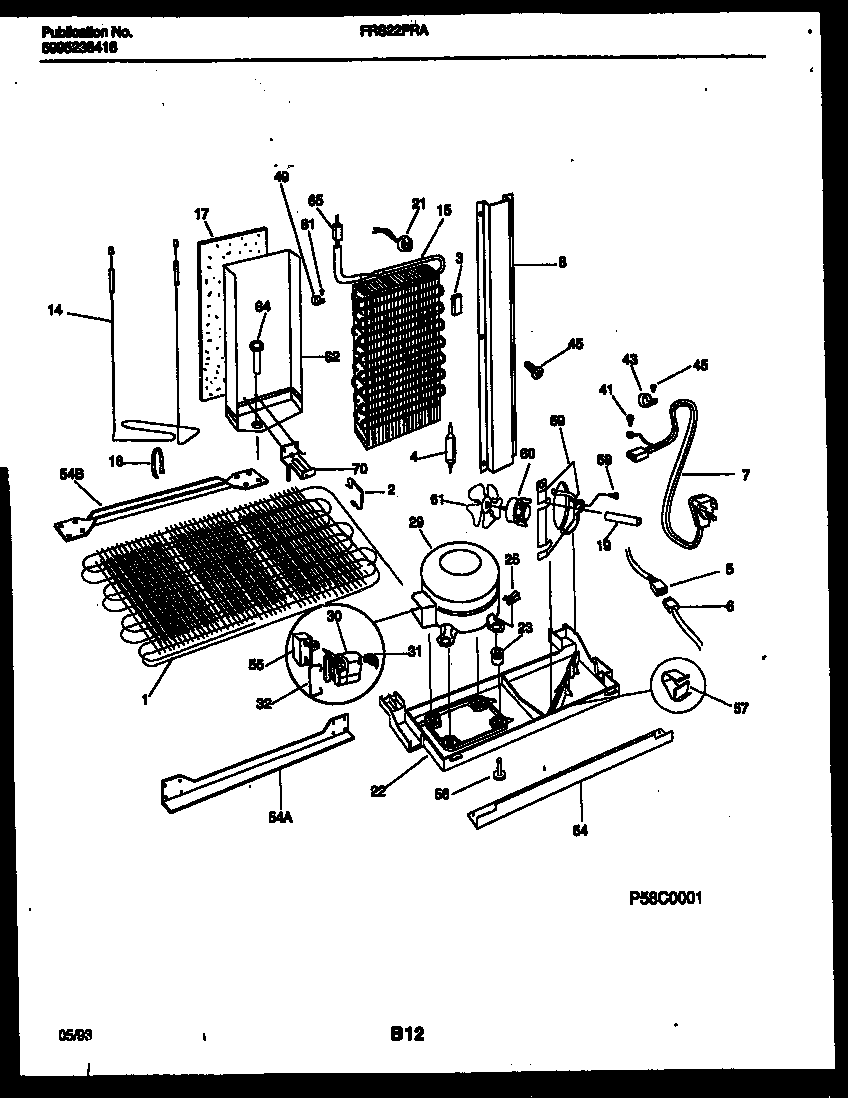

FRS22PRAD2 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FRS22PRAD2 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FRS22PRAD2 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*75606WCI 5303917166
1WCI 5303289487
1ASPACER-COND TUBE,BLACK
1ASPACER TUBE
2WCI 5303289029
3WCI 215226501
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215458800
5AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
6WCI 215501600
7WCI 215459201
8WCI 5303289033
14WCI 5303289520
15EVAPORATOR, W/HEAT EXCHANGR
15ATUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
21WCI 215095200
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303925125
30WCI 216008900
31WCI 5303274700
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
43B5308000133 Frigidaire Refrigerator Clamp
45A5304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54AWCI 5303289311
54C5304500008 Frigidaire Oven Screw
54BWCI 5303289292
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61AWCI 215004700
61WCI 5303289032
61BGROMMET, SILENCER (NOT ILLUSTRATED)
62WCI 215048700
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
