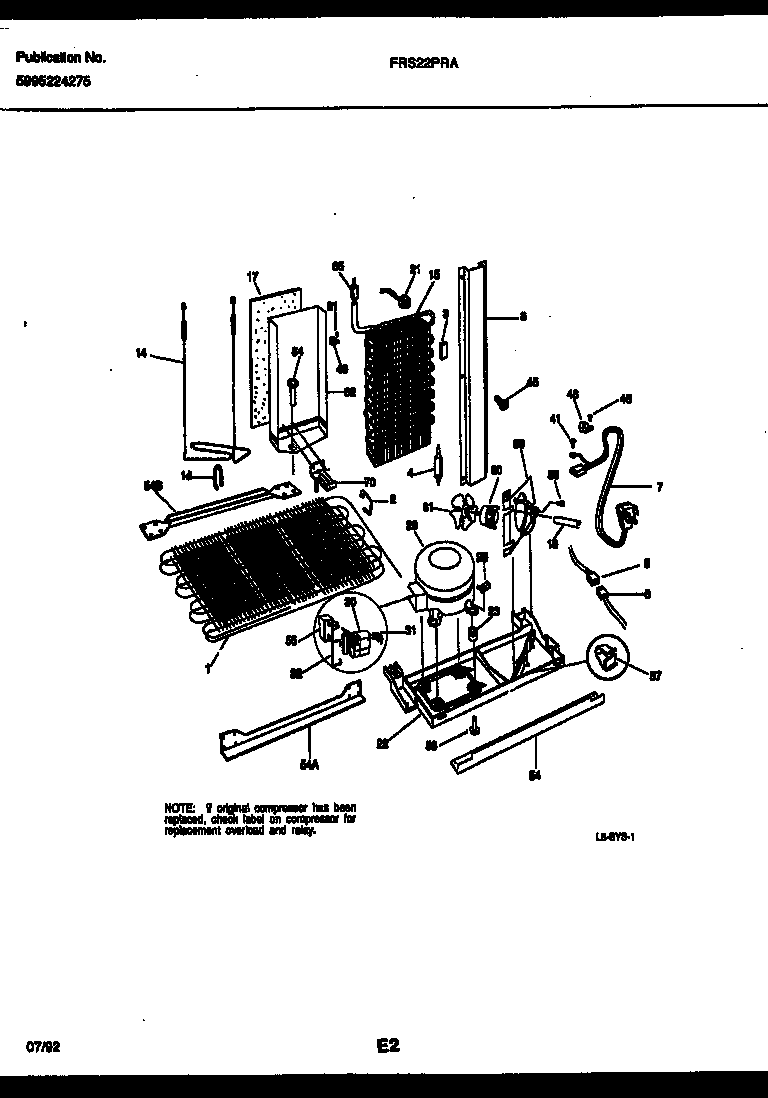

FRS22PRAW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FRS22PRAW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FRS22PRAW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1ASPACER TUBE
1WCI 5303289487
2WCI 5303289029
3WCI 215305800
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5WCI 215225400
6WCI 215226800
7CORD-ELECTRIC POWER
8WCI 5303289033
14WCI 5303289520
15ATUBE-INLET (NOT ILLUSTRATED)
15WCI 215289602
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
21WCI 215095200
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917193
30WCI 216008900
315303271616 Frigidaire Refrigerator P1-Overload
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215324700
