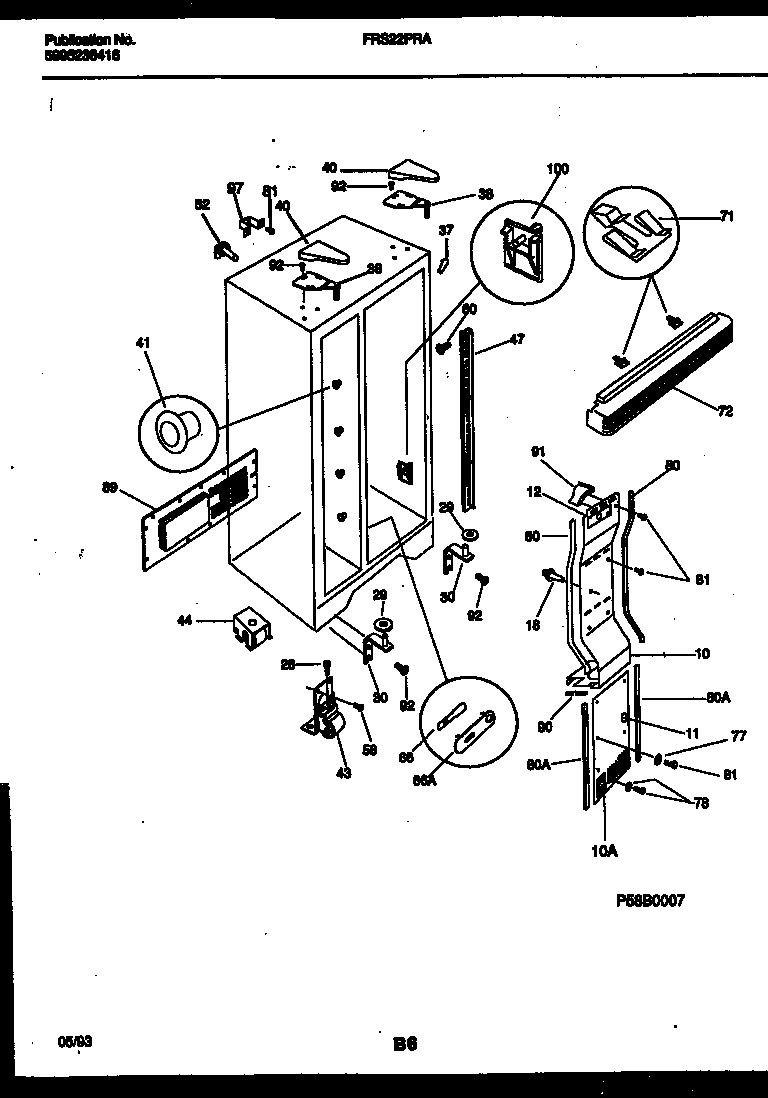

FRS22PRAW2 04 – CABINET PARTS

Products

Position	Product
*75598	PLUG, BUTTON, CABINET LINER (NI)
10A	WCI 5303289494
10	WCI 5303289495
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18A	SUPPORT-AIR DUCT CVR,1.83`` LONG
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215003200
29A	WCI 215314300
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
30A	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37	TRIM-CABINET CORNER, WHITE
38	WCI 215595600
40	WCI 5303288945
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
47	WCI 5303288974
52	WCI 5303289294
52A	PLUG-WTR INLET TUBE
60	5304455852 Frigidaire Refrigerator Screw
66A	WCI 215050101
66	WCI 215050201
71	WCI 215003300
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72	WCI 5303289507
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 5303289037
80A	WCI 5303289036
81	5304455650 Frigidaire Refrigerator Screw
89A	218843801 Frigidaire Refrigerator Screw
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
100	SUPPORT-PAN COVER
