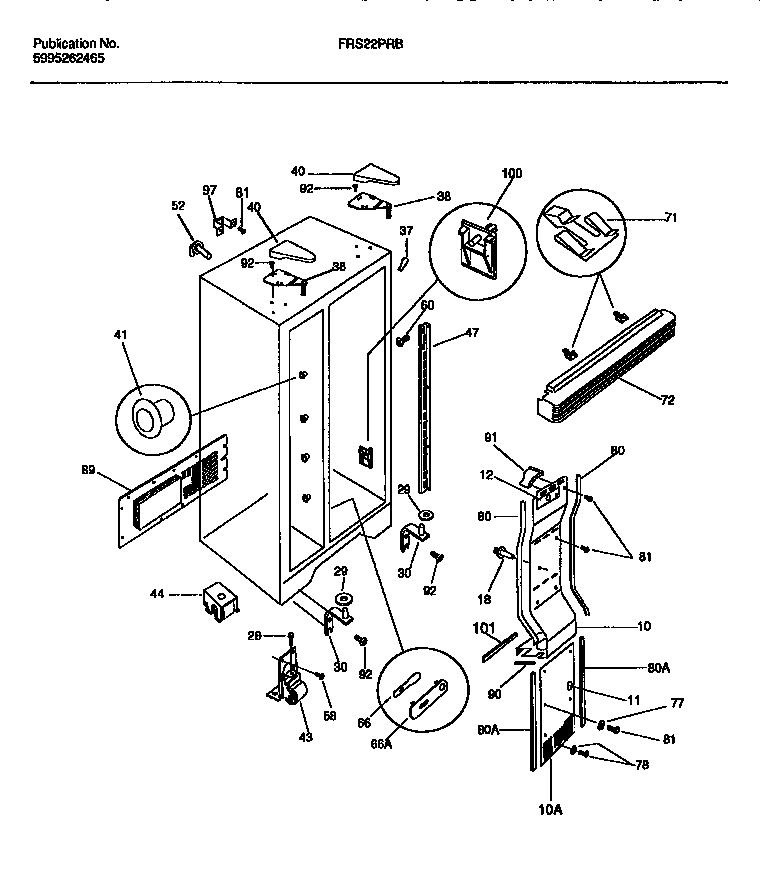

FRS22PRBD1 04 – CABINET, LIGHT SHIELDS, MULLION

Products

Position	Product
*05802	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*05805	PLUG, BUTTON, CABINET LINER (NI)
*05803	TOUCH, UP PAINT, ALMOND (NI)
10	WCI 5303289495
10A	WCI 215637400
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	SUPPORT-AIR DUCT CVR,1.83`` LONG
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215003200
29	WCI 215314300
30	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	TAPPING PLATE, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
38	BRACKET, UPPER HINGE, W/CLOSER, WHITE
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 5303289059
43	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
47	WCI 5303288974
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
52	PLUG-WTR INLET TUBE
60	5304455852 Frigidaire Refrigerator Screw
66A	WCI 218171301
66	WCI 215050201
71	WCI 215003300
71	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72	WCI 5303289508
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80A	WCI 218249801
80	WCI 218154003
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
100	SUPPORT-PAN COVER
101	WCI 215305702
