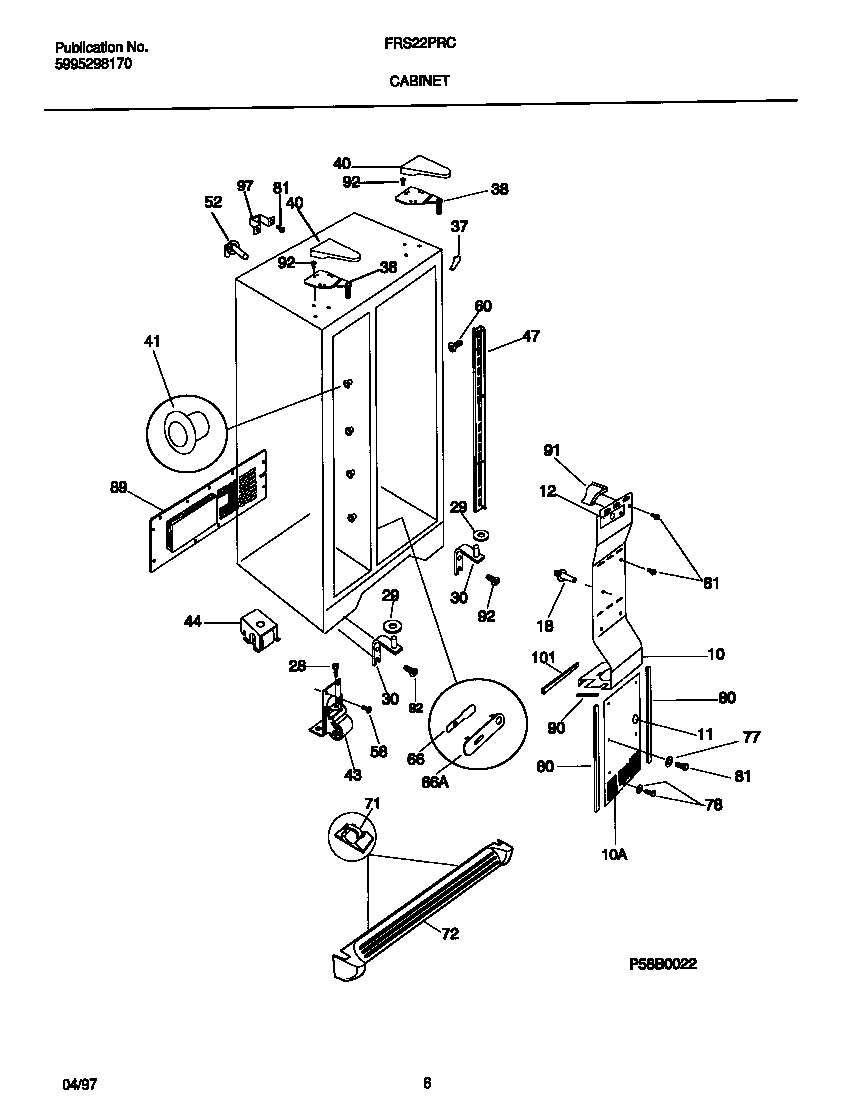

FRS22PRCW3 04 – CABINET

FRS22PRCW3 04 – CABINET

Written by

in

FRS22PRCW3 04 – CABINET

Products

PositionProduct
*526845303321319 Frigidaire Refrigerator White Touch Up Paint
*52685PLUG, BUTTON, CABINET LINER (NI)
*52682WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637400
10WCI 215637601
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18AWCI 5303289043
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29BWCI 215314300
29AWCI 215003200
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218730700
30DWCI 218730900
30CWCI 218730800
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
43AWCI 218615300
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
47WCI 218659500
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
52BPLUG-WTR INLET TUBE
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359603
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 215176300
90AWCI 215022602
90BWCI 5303322647
91WCI 21877000
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
101WCI 215305702
