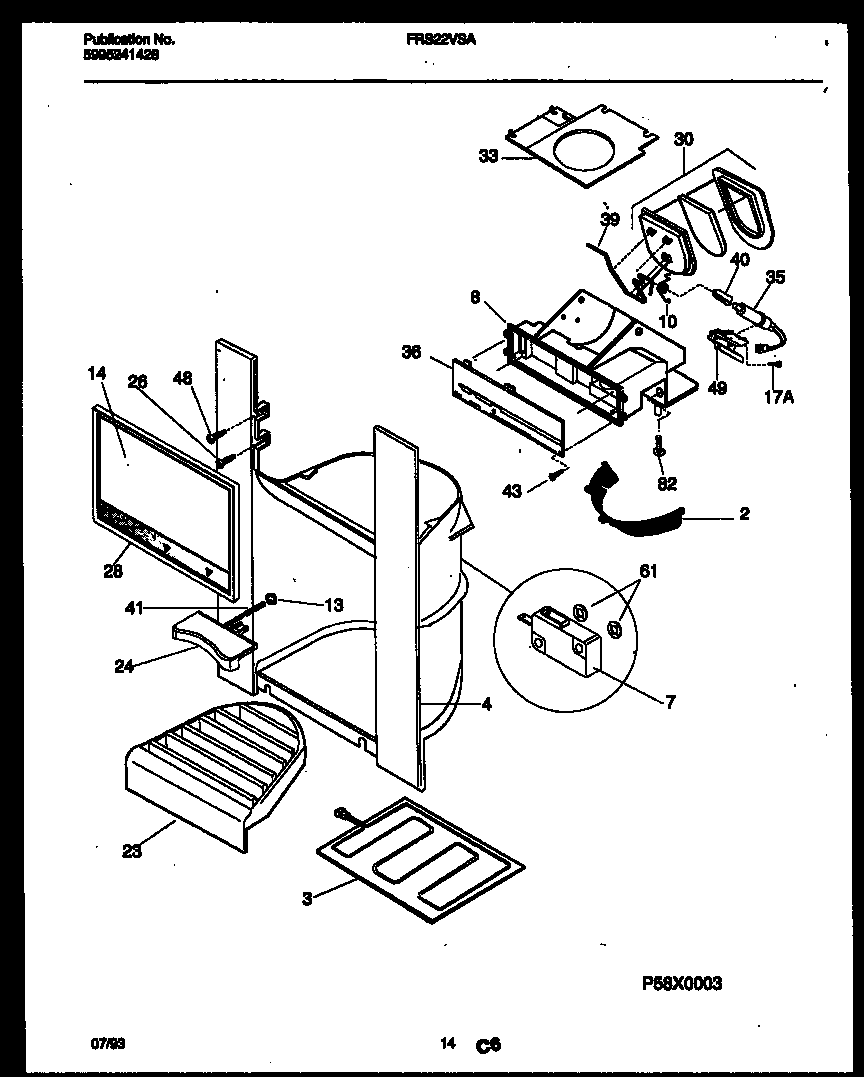

FRS22VSAD0 08 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*83614SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
*83614WASHER-FLAT
*83614WCI 215968600
2WCI 215732111
3WCI 215484300
4WCI 5303298525
7WCI 215765600
8WCI 215968500
10WCI 215793600
13WCI 215748101
14WCI 215766102
17AWCI 215840700
23WCI 5303297845
24WCI 215766302
26215503203 Frigidaire Refrigerator Door Handle Screw
28WCI 5303297847
30DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33WCI 215851100
35WCI 215793900
36WCI 215254400
39WCI 215793700
40WCI 215794300
41WCI 215765400
43WCI 215760300
48SCREW (4)
49WCI 215794000
61WCI 215766000
82WCI 215296300
