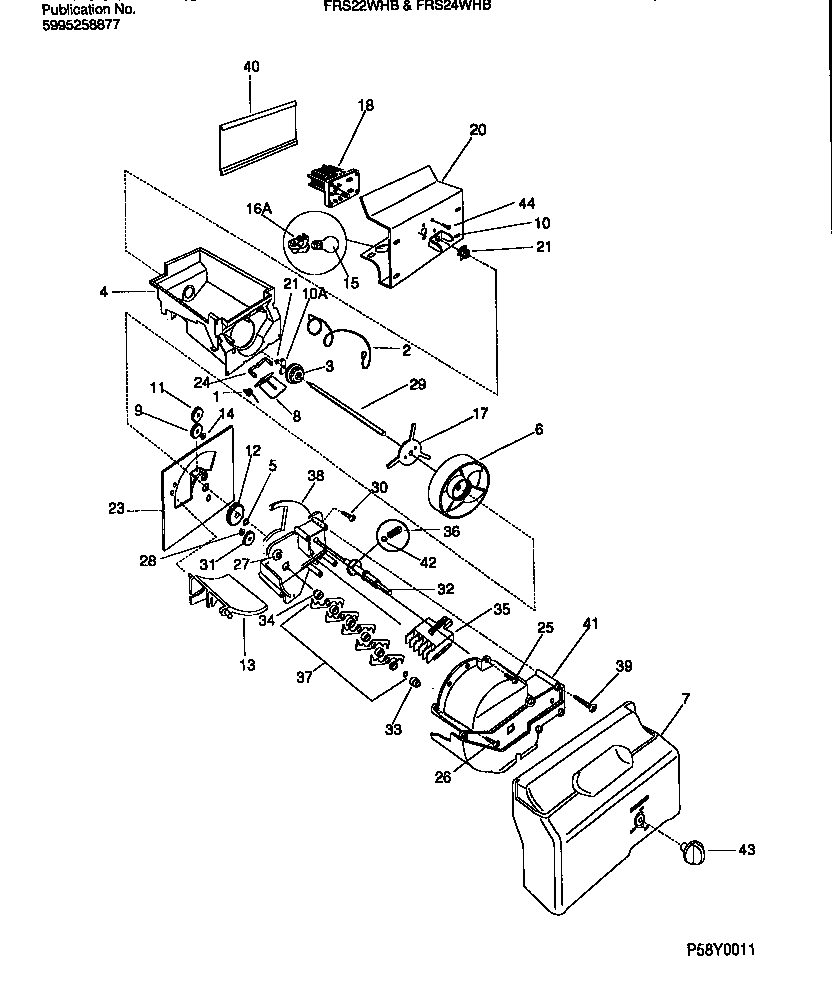

FRS22WHBD0 09 – ICE CONTAINER & DISPENSER DRIVE

FRS22WHBD0 09 – ICE CONTAINER & DISPENSER DRIVE

Written by

in

FRS22WHBD0 09 – ICE CONTAINER & DISPENSER DRIVE

Products

PositionProduct
1WCI 2215571300
2WCI 218232500
3WCI 218232300
4WCI 218216800
4ALABEL-ICE CONTAINER (NOT ILLUSTRATED)
5WCI 215745105
6WCI 215752800
7WCI 215421601
8WCI 215571200
9WCI 215419700
10241726501 Frigidaire Refrigerator Drive Bar
10AWCI 218232800
11WCI 215755200
12WCI 215420400
13WCI 218285200
14WCI 215419900
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 215754800
185304462594 Frigidaire Refrigerator Motor-Auger
18AHARNESS-WIRING, AUGER MOTOR, (NON-ILLUSTRATED)
20WCI 215285301
23ARING-RETAINER (NOT ILLUSTRATED)
23BSTUD (NOT ILLUSTRATED)
23WCI 215755300
24WCI 215571400
25WCI 215421400
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215748400
28WCI 215755100
29WCI 215757501
30WCI 215757300
31WCI 215757400
32ARING-SNAP (NOT ILLUSTRATED)
32WCI 215747501
33WCI 215748200
34WCI 215748300
35WCI 215753500
36WCI 215756700
37WCI 215756100
37HSPACER, (2) (NOT ILLUSTRATED)
37GRING-SNAP (NOT ILLUSTRATED)
37FSHAFT-CRUSHER (NOT ILLUSTRATED)
37EBLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37DBLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37ISPACER, (4) (NOT ILLUSTRATED)
37CBLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37ABLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37BBLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
38WCI 218270100
39WCI 215757000
41WCI 218270200
42WCI 215756000
43BSPRING-KNOB (NOT ILLUSTRATED)
43WCI 215755002
44WCI 218359200
