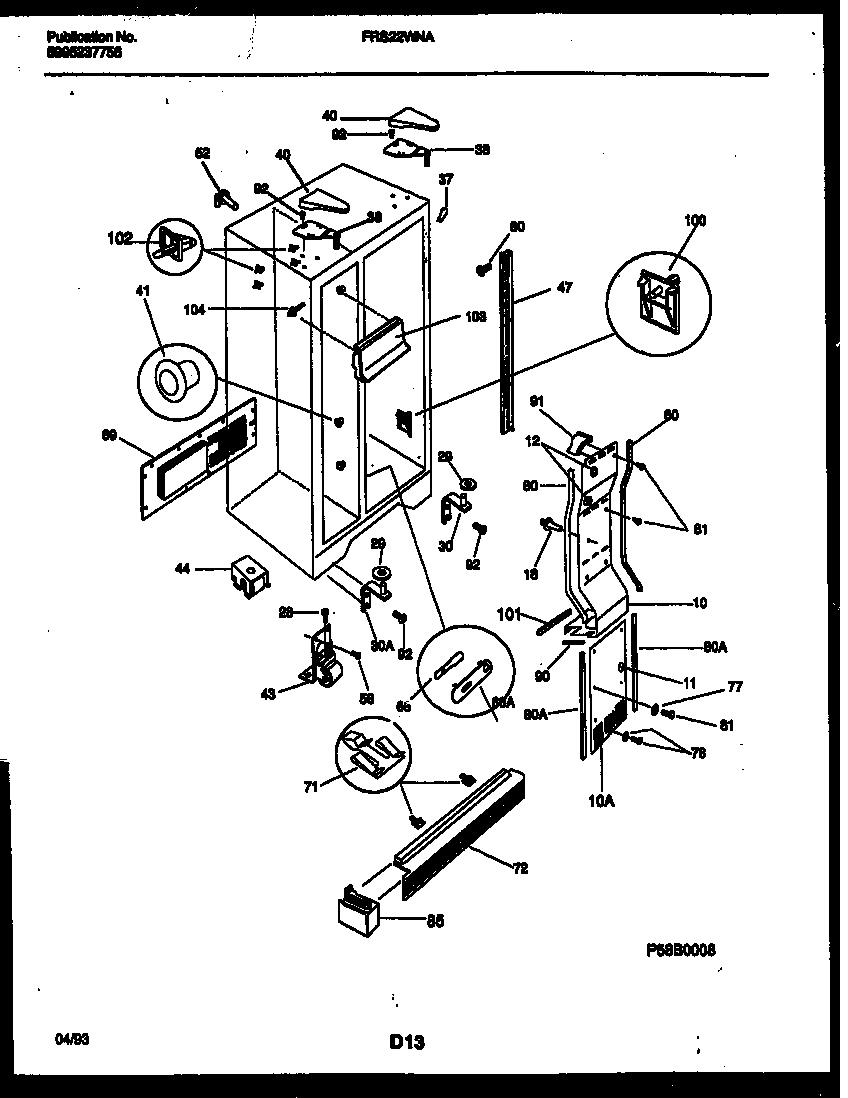

FRS22WNAW0 04 – CABINET PARTS

FRS22WNAW0 04 – CABINET PARTS

Written by

in

FRS22WNAW0 04 – CABINET PARTS

Products

PositionProduct
10AWCI 5303289494
10WCI 5303297838
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30ATAPPING PLATE, RH (NOT ILLUSTRATED)
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
30AWCI 215009000
37TRIM-CABINET CORNER, WHITE
38WCI 215595600
40WCI 5303288945
415304509705 Frigidaire Refrigerator Grommet
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43WCI 5303289059
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52WCI 5303289294
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66AWCI 215050101
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 5303295757
77WASHER-NYLON,3/16 X 5/8 OD
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
785304455651 Frigidaire Refrigerator Screw
80WCI 5303289037
80AWCI 5303289036
815304455650 Frigidaire Refrigerator Screw
85WCI 215003801
89A218843801 Frigidaire Refrigerator Screw
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104SUPPORT-ICE ACCESS DR
104ASCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
