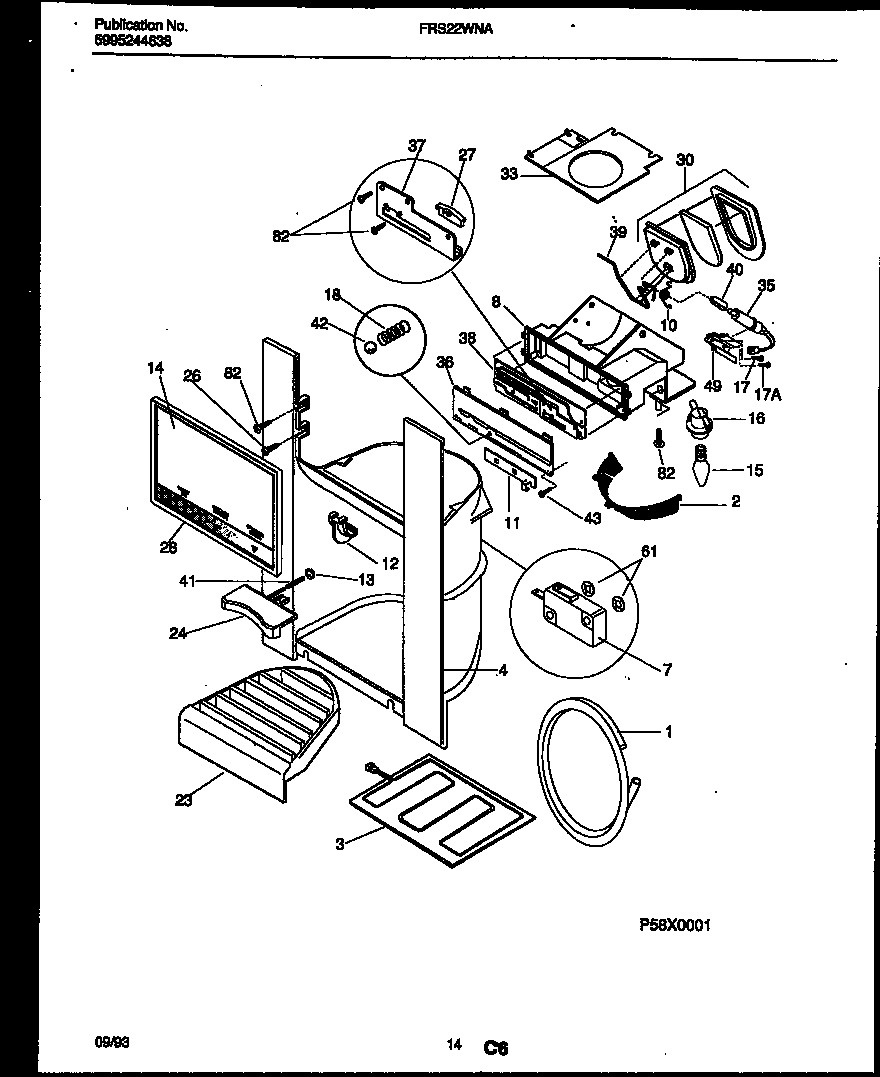

FRS22WNAW1 08 – ICE DOOR, DISPENSER AND WATER TANKS

Products

Position	Product
*87166	WCI 215781700
*87166	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
*87166	WASHER-FLAT
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	WCI 215294101
2	WCI 215732101
3	WCI 215484300
4	WCI 5303298524
7	WCI 215765600
8	WCI 215763500
10	WCI 215793600
11	WCI 215253300
12	WCI 215766501
13	WCI 215748101
14	WCI 215731700
15	WCI 5304506475
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17A	WCI 215840700
18	WCI 215760200
23	WCI 5303297845
23	WCI 5303297844
24	WCI 215766301
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	WCI 5303297846
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 215851100
35	WCI 215793900
36	WCI 215254400
37	WCI 215763400
38	WCI 215894601
38C	WCI 215763900
38B	WCI 215631000
38A	WCI 215630800
39	WCI 215793700
40	WCI 215794300
41	WCI 215765400
42	WCI 215756000
43	WCI 215760300
49	WCI 215794000
61	WCI 215766000
82	WCI 215296300
