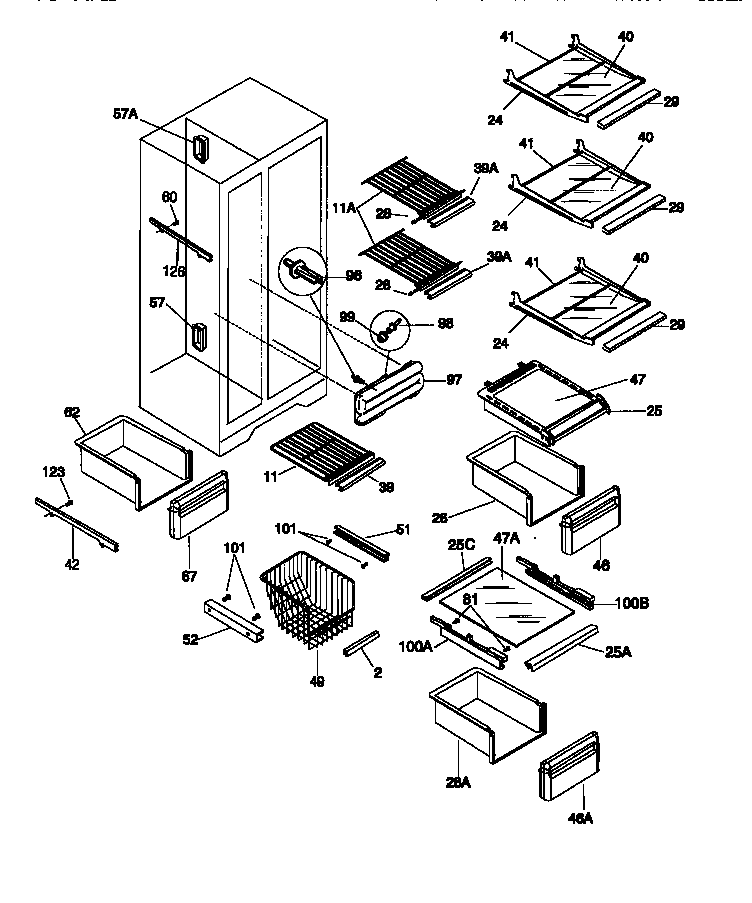

FRS22WNCD1 05 – SHELVES

FRS22WNCD1 05 – SHELVES

Written by

in

FRS22WNCD1 05 – SHELVES

Products

PositionProduct
*63244WCI 215339900
2WCI 5303289382
11SHELF-FREEZER, FIXED WIRE
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11AWCI 218298001
24WCI 215919137
25WCI 218015302
25CWCI 218015402
25COVER-STORAGE PAN
25ATRIM-STORAGE PAN CVR, W/HUMIDITY HOLE (NOT ILLUSTRATED)
25B5303307715 Frigidaire Refrigerator Humidity Control
265303289500 Frigidaire Refrigerator Upper Storage Pan
26A5303289501 Frigidaire Refrigerator Lower Storage Pan Os1
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
29WCI 215919430
39AWCI 215217580
39WCI 215217579
40WCI 218390581
41WCI 215919815
42AHANGER-PAN/TRAY, RH
42WCI 215002301
46A5304411659 Frigidaire Refrigerator Front Storage Pan
47AINSERT-PAN COVER,16.31“ X 17.32“ ,GLASS
47WCI 218390584
49WCI 5303289521
51WCI 5303288960
52AWASHER, .28 X .62 X .19, NYLON
52WCI 215162501
57WCI 5303271653
57AWCI 5303289064
605304455852 Frigidaire Refrigerator Screw
62WCI 5303289517
67WCI 5303309826
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99GROMMET-TANK
100AWCI 218015601
100WCI 218015501
1015304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
126WCI 215205400
126ARAIL-AUGER BUCKET, RH (NOT ILLUSTRATED)
