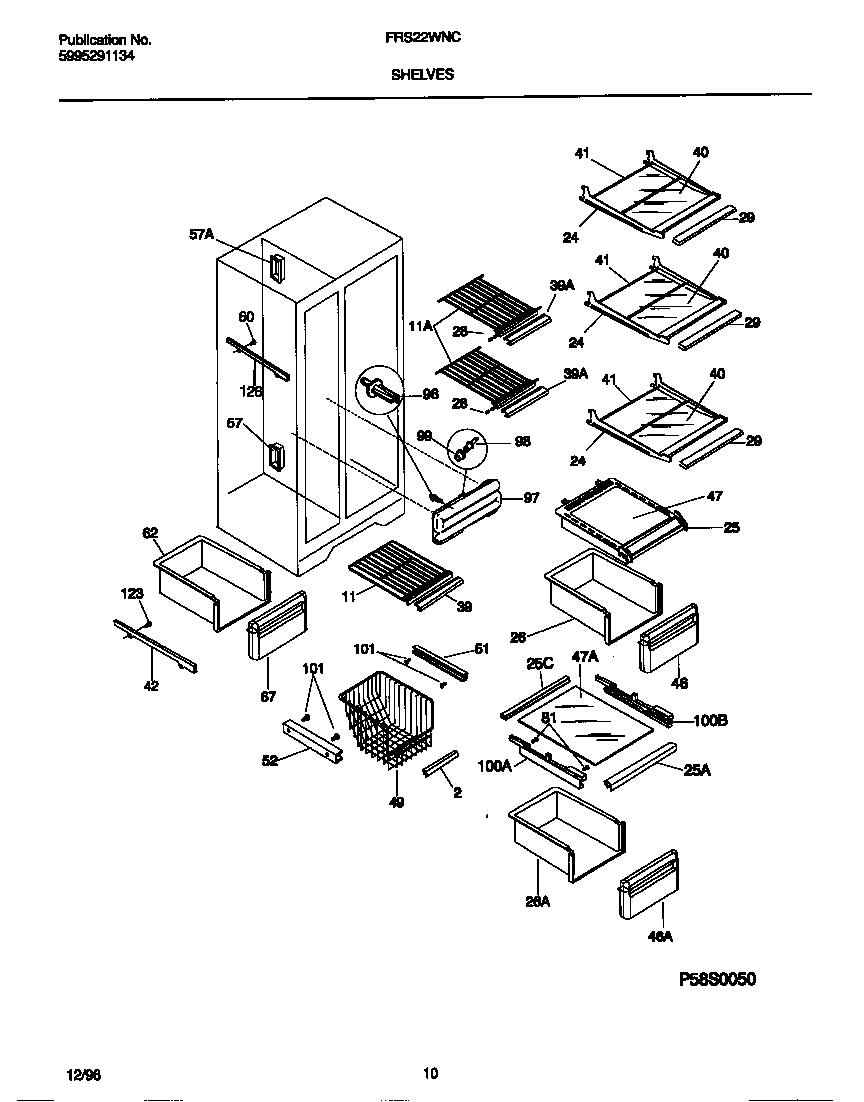

FRS22WNCD4 05 – SHELVES

FRS22WNCD4 05 – SHELVES

Written by

in

FRS22WNCD4 05 – SHELVES

Products

PositionProduct
*81048WCI 215339900
*81047SPACER, FRZR SHELF (NOT ILLUSTRATED)
2WCI 5303289382
11WCI 218298001
11SHELF-FREEZER, FIXED WIRE
24WCI 215919137
25WCI 218015302
25WCI 218015402
25BTRIM-STORAGE PAN CVR, W/HUMIDITY HOLE (NOT ILLUSTRATED)
25ACOVER-STORAGE PAN
25C5303307715 Frigidaire Refrigerator Humidity Control
265303289501 Frigidaire Refrigerator Lower Storage Pan Os1
265303289500 Frigidaire Refrigerator Upper Storage Pan
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
29WCI 215919430
39WCI 215217579
39WCI 215217580
40WCI 218390581
41WCI 215919815
42BHANGER-PAN/TRAY, RH
42AWCI 215002301
465304411659 Frigidaire Refrigerator Front Storage Pan
47INSERT-PAN COVER,16.31“ X 17.32“ ,GLASS
47WCI 218390584
49WCI 5303289521
51WCI 5303288960
52WCI 215162501
57WCI 5303289064
57WCI 5303271653
605304455852 Frigidaire Refrigerator Screw
62WCI 5303289517
67WCI 5303309826
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99GROMMET-TANK
100WCI 218015501
100WCI 218015601
1015304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
126AWCI 215205400
126BRAIL-AUGER BUCKET, RH (NOT ILLUSTRATED)
