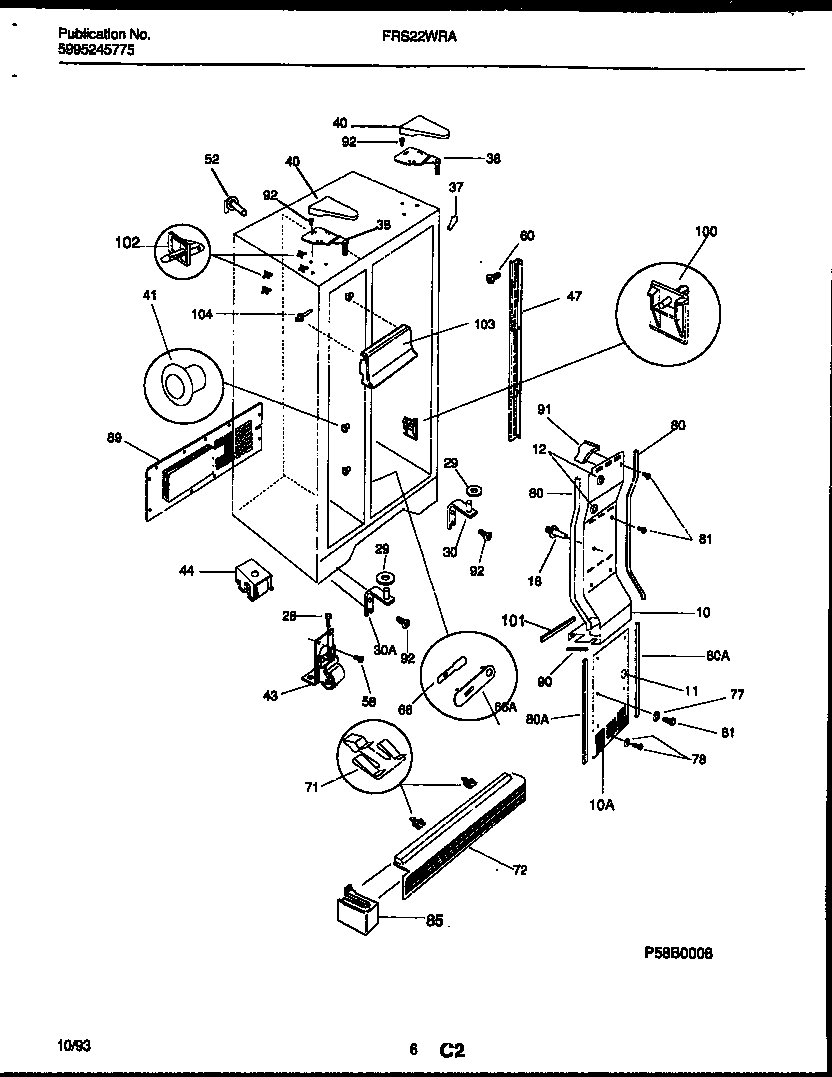

FRS22WRAD2 04 – CABINET PARTSadmin2025-04-26T08:35:20+00:00FRS22WRAD2 04 – CABINET PARTS
Products
| Position | Product |
|---|
| 10 | WCI 5303297838 |
| 10A | WCI 5303289494 |
| 11 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 12 | 5303001147 Frigidaire Refrigerator Plug-Harness Hole |
| 18A | SUPPORT-AIR DUCT CVR,1.83`` LONG |
| 18 | WCI 5303289043 |
| 28 | WCI 5303289062 |
| 29 | WCI 215003200 |
| 29 | WCI 215598900 |
| 30 | BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN |
| 30B | TAPPING PLATE, RH (NOT ILLUSTRATED) |
| 30C | TAPPING PLATE, LH (NOT ILLUSTRATED) |
| 30A | WCI 215009000 |
| 37 | TRIM-CABINET CORNER, ALMOND |
| 38 | WCI 215595601 |
| 40 | WCI 5303288946 |
| 41 | 5304509705 Frigidaire Refrigerator Grommet |
| 41A | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 43A | SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8 |
| 43 | WCI 5303289059 |
| 44 | WCI 215163900 |
| 47 | WCI 5303288974 |
| 52 | WCI 5303289294 |
| 60 | 5304455852 Frigidaire Refrigerator Screw |
| 66A | WCI 215050101 |
| 66 | WCI 215050201 |
| 71A | SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED) |
| 71 | WCI 215003300 |
| 72 | WCI 5303295758 |
| 77 | WASHER-NYLON,3/16 X 5/8 OD |
| 78A | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 80 | WCI 5303289037 |
| 80A | WCI 5303289036 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 85 | WCI 215003803 |
| 89A | 5304455651 Frigidaire Refrigerator Screw |
| 89 | WCI 215176300 |
| 90 | WCI 215022602 |
| 91 | WCI 215177600 |
| 92 | 241710601 Frigidaire Refrigerator Screw |
| 100 | SUPPORT-PAN COVER |
| 101 | WCI 215305702 |
| 102 | SUPPORT, MOTOR BRKT, & SHELF |
| 103 | WCI 215413100 |
| 104 | SUPPORT-ICE ACCESS DR |
| 104A | SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED) |
