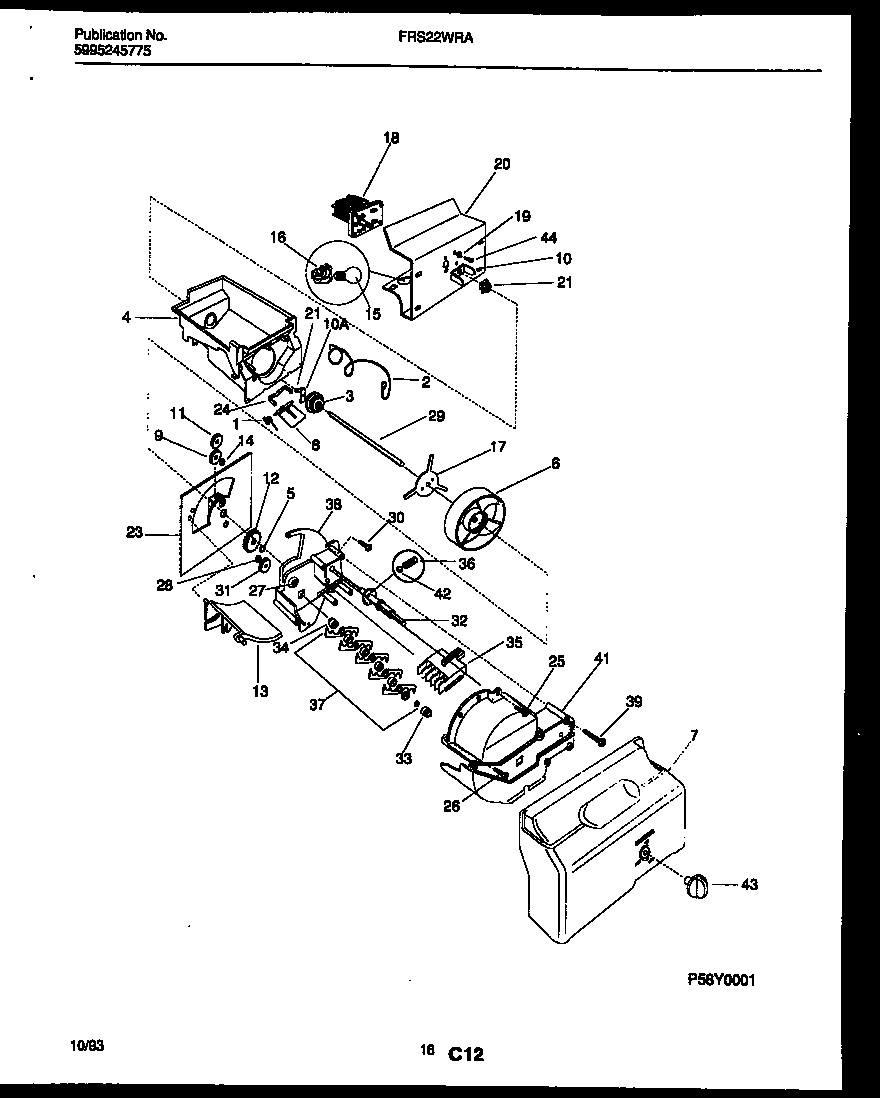

FRS22WRAW2 09 – ICE DISPENSER

Products

Position	Product
1	WCI 215571300
2	WCI 215419000
3	WCI 215419200
4A	WCI 218037500
4	WCI 215417700
5	WCI 215748105
6	WCI 215752800
7	WCI 215421601
8	WCI 215571200
9	WCI 215419700
10A	WCI 215757200
10	241726501 Frigidaire Refrigerator Drive Bar
11	WCI 215755200
12	WCI 215420400
13	WCI 218033600
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16	WCI 215767100
17	WCI 215754800
18	5304462594 Frigidaire Refrigerator Motor-Auger
18A	WCI 215285500
19	WCI 215771000
20	WCI 215285301
23B	STUD (NOT ILLUSTRATED)
23	WCI 215755300
23A	RING-RETAINER (NOT ILLUSTRATED)
24	WCI 215571400
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
28	WCI 215755100
29	WCI 215757501
30	WCI 215757300
31	WCI 215757400
32	WCI 215747501
32A	RING-SNAP (NOT ILLUSTRATED)
33	WCI 215748200
34	WCI 215748300
35	WCI 215753500
36	WCI 215756700
37F	SHAFT-CRUSHER (NOT ILLUSTRATED)
37C	BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37D	BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37I	SPACER, (4) (NOT ILLUSTRATED)
37	WCI 215756100
37H	SPACER, (2) (NOT ILLUSTRATED)
37E	BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37B	BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37G	RING-SNAP (NOT ILLUSTRATED)
37A	BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
38	WCI 218033800
39	WCI 215757000
41	WCI 218033700
42	WCI 215756000
43	WCI 215755001
43A	SPRING-KNOB (NOT ILLUSTRATED)
44	WCI 215285200
