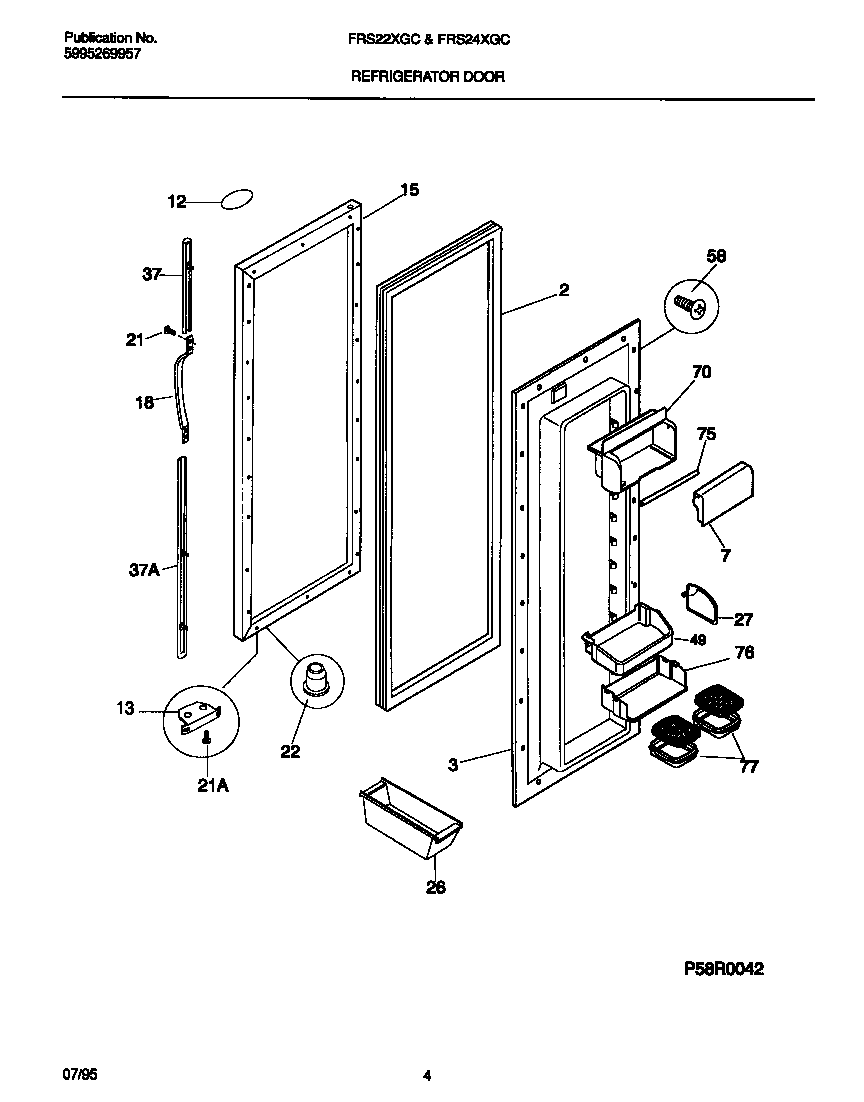

FRS22XGCB1 03 – REFRIGERATOR DOOR

FRS22XGCB1 03 – REFRIGERATOR DOOR

Written by

in

FRS22XGCB1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*35241INSULATION
2WCI 215734324
3WCI 215353101
7WCI 218383101
12AWCI 215008606
12WCI 218364006
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 5303917510
18WCI 218025205
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27WCI 218370001
37WCI 215867033
37BWCI 215782300
37AWCI 215867030
49WCI 218592311
585304455651 Frigidaire Refrigerator Screw
70WCI 218383201
75WCI 218431100
76WCI 218423800
77WCI 218423502
