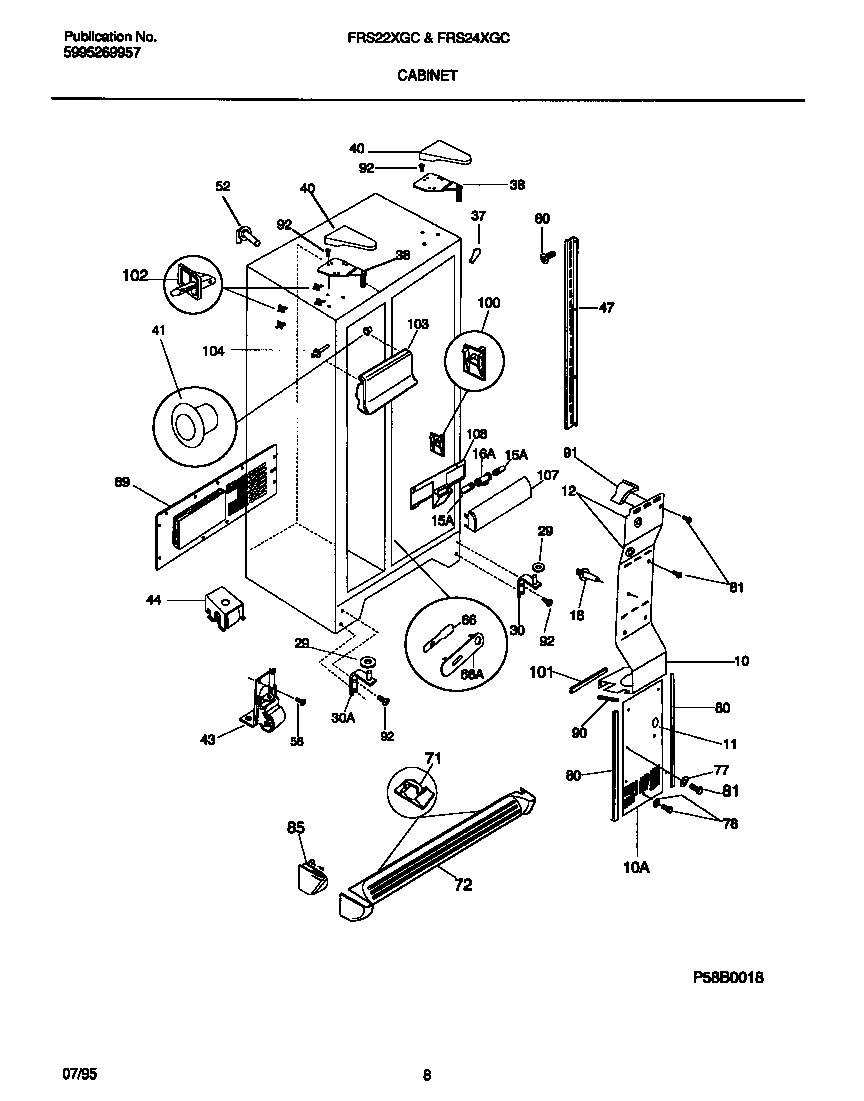

FRS22XGCB1 04 – CABINET

Products

PositionProduct
*352425303321321 Frigidaire Refrigerator Black Touch-Up Paint
10AWCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15AWCI 218188900
16AWCI 5303299157
18WCI 5303289043
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
29AWCI 215598900
29WCI 215003200
30CTAPPING PLATE, RH (NOT ILLUSTRATED)
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
37WCI 5303272428
38WCI 218215202
40WCI 218374403
43WCI 218615300
43AWCI 5303289062
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66AWCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
785304455651 Frigidaire Refrigerator Screw
80WCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 218368301
104ASCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218476800
