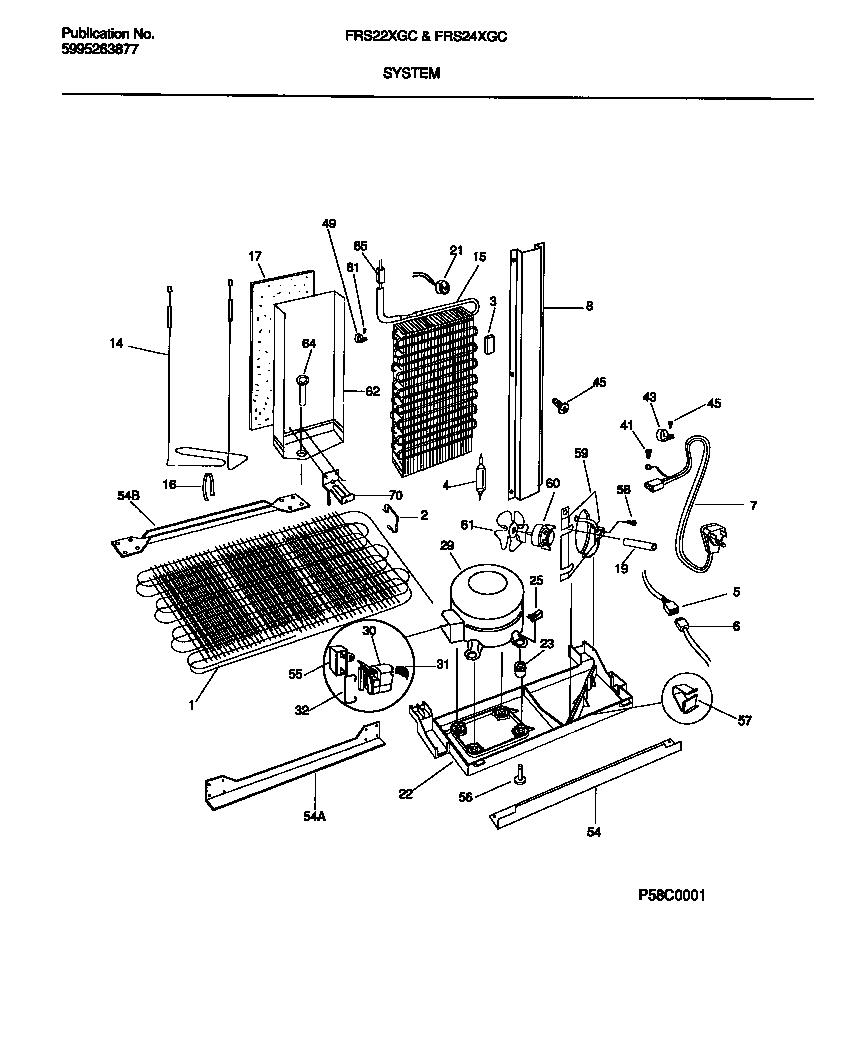

FRS22XGCD0 07 – SYSTEM

FRS22XGCD0 07 – SYSTEM

Written by

in

FRS22XGCD0 07 – SYSTEM

Products

PositionProduct
*68692WCI 5303917166
1BSPACER TUBE
1ASPACER-COND TUBE,BLACK
1WCI 5303289487
2WCI 5303289029
3AWCI 215226501
3BBLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5AWCI 218254800
5CWIRING HARNESS,REFR CONTROLS
5BHARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
5DWCI 218463600
6WCI 218254900
7WCI 215459201
8WCI 5303289033
14WCI 215752000
15BTUBE-INLET (NOT ILLUSTRATED)
15AEVAPORATOR, W/HEAT EXCHANGR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917193
30WCI 216008900
315303271616 Frigidaire Refrigerator P1-Overload
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
43C5308000133 Frigidaire Refrigerator Clamp
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45C5304455852 Frigidaire Refrigerator Screw
45A5304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289027
54WCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61BWCI 215004700
61AWCI 5303289032
61CGROMMET, SILENCER (NOT ILLUSTRATED)
62WCI 215048700
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
