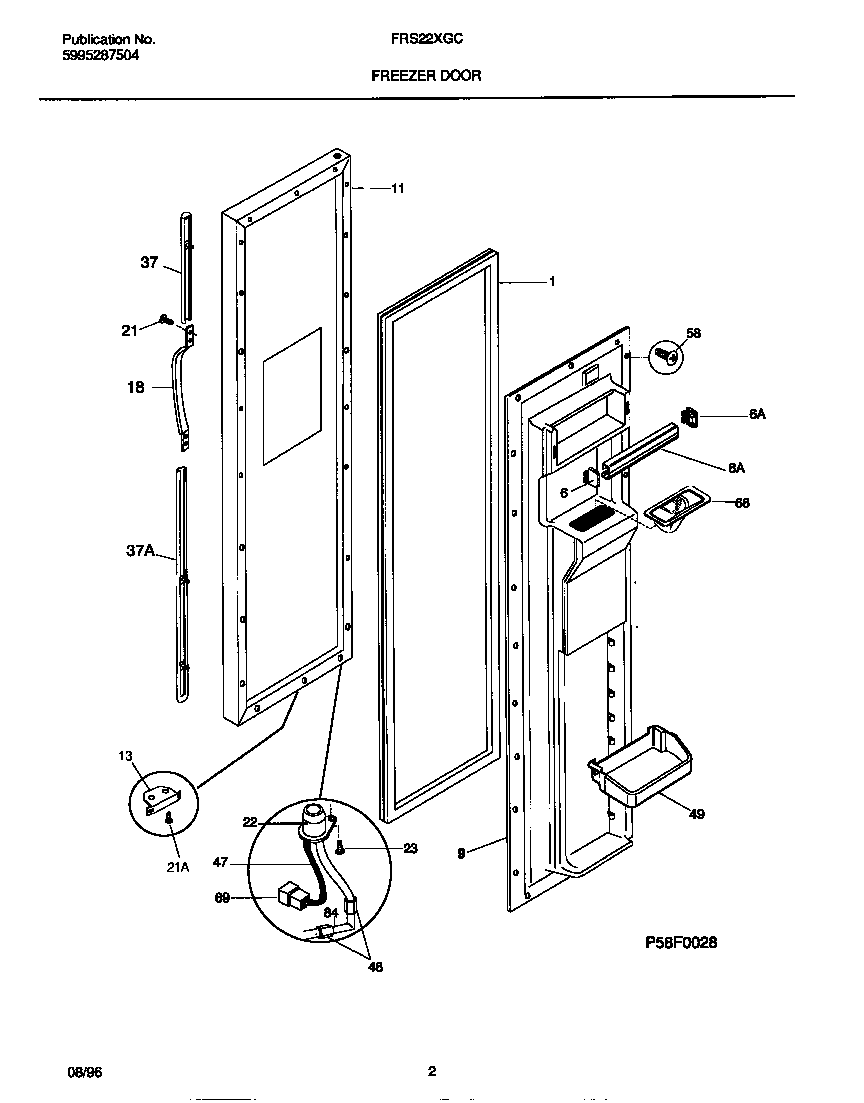

FRS22XGCD3 02 – FREEZER DOOR

FRS22XGCD3 02 – FREEZER DOOR

Written by

in

FRS22XGCD3 02 – FREEZER DOOR

Products

PositionProduct
*31004INSULATION
*31003WCI 218676002
*31001WCI 215940700
*31000WCI 215598900
*31002WCI 215782300
1WCI 215734303
6WCI 5303297814
6WCI 5303297813
8WCI 215474038
9WCI 218510501
11WCI 5303917663
13WCI 5303289522
18WCI 218025204
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 215615300
23WCI 5303001020
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
47WCI 218485100
48NUT, 7/16 X 20, NYLON
49BIN-DOOR,2 LITER ,WITH TRIM
58216858001 Frigidaire Refrigerator Screw
68WCI 218020600
69CONNECTOR-DOOR HARN
84WCI 5308010289
