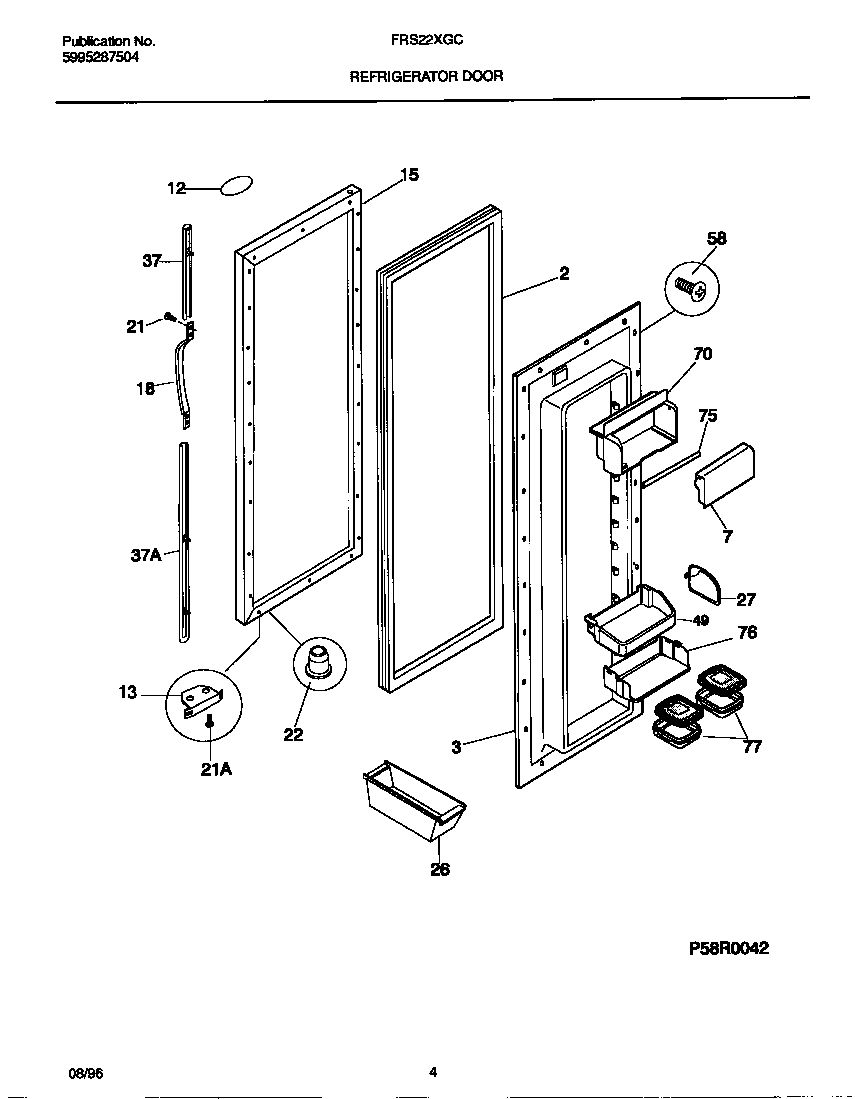

FRS22XGCW3 03 – REFRIGERATOR DOORadmin2025-04-26T08:35:49+00:00FRS22XGCW3 03 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| *31008 | INSULATION |
| *31007 | WCI 218676002 |
| *31005 | WCI 215940700 |
| *31006 | WCI 215782300 |
| 2 | WCI 215734314 |
| 3 | WCI 215353101 |
| 7 | WCI 218383101 |
| 12 | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12 | WCI 215008604 |
| 12 | WCI 218364004 |
| 13 | WCI 5303289522 |
| 15 | WCI 5303917498 |
| 18 | WCI 218025201 |
| 21 | 218578600 Frigidaire Refrigerator Door Stop Mounting Screw |
| 21 | 218843801 Frigidaire Refrigerator Screw |
| 22 | WCI 5303289320 |
| 26 | WCI 3204522 |
| 27 | WCI 218370001 |
| 37 | TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK |
| 37 | TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS |
| 49 | WCI 218592311 |
| 58 | 216858001 Frigidaire Refrigerator Screw |
| 70 | WCI 218383201 |
| 75 | WCI 218431100 |
| 76 | WCI 218423800 |
| 77 | WCI 218423502 |
