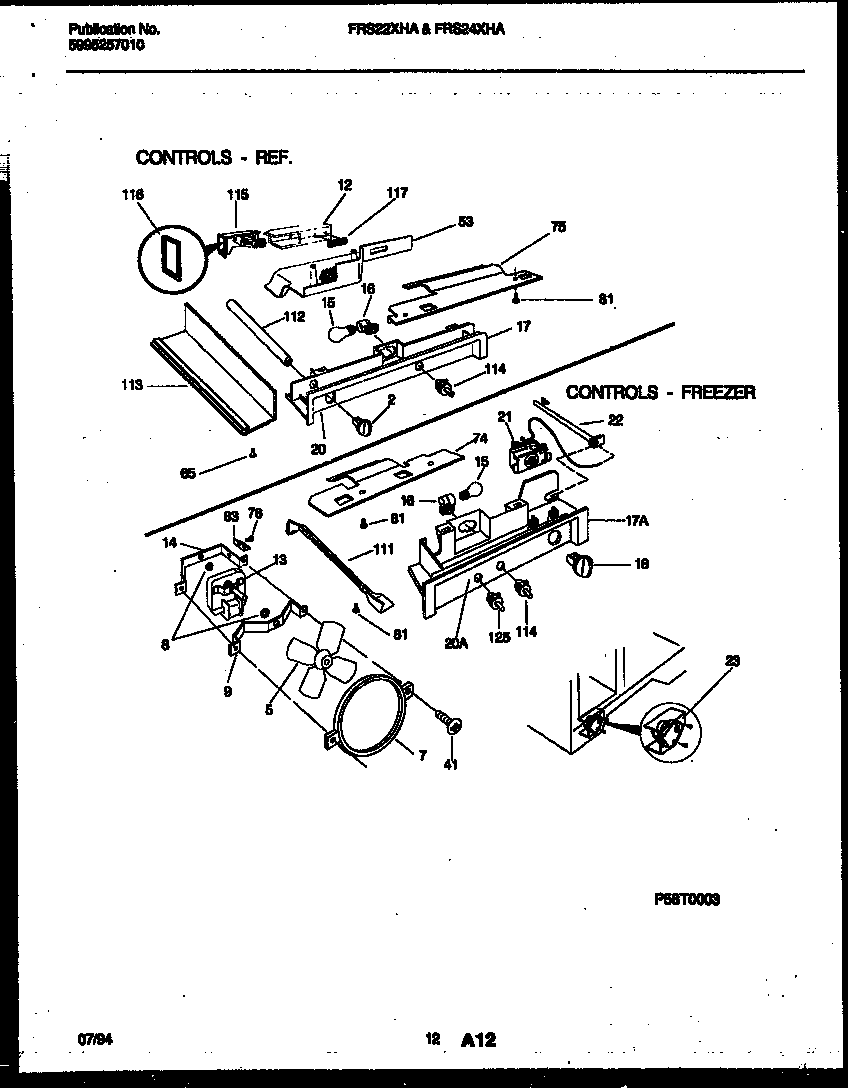

FRS22XHAB1 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FRS22XHAB1 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FRS22XHAB1 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
2WCI 5303289045
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215901100
13A215474201 Frigidaire Refrigerator Washer
13WCI 215348100
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BOX – CONTROL, REFR
17ACONTROL BOX, FRZR
17AWCI 215980800
18WCI 5303289054
20AWCI 5303301522
20WCI 5303301521
21WCI 5303300027
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
23CSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
41ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
415308000039 Frigidaire Refrigerator Screw
53AWCI 215267300
53WCI 215177800
65WCI 5303001361
74WCI 5303289516
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
