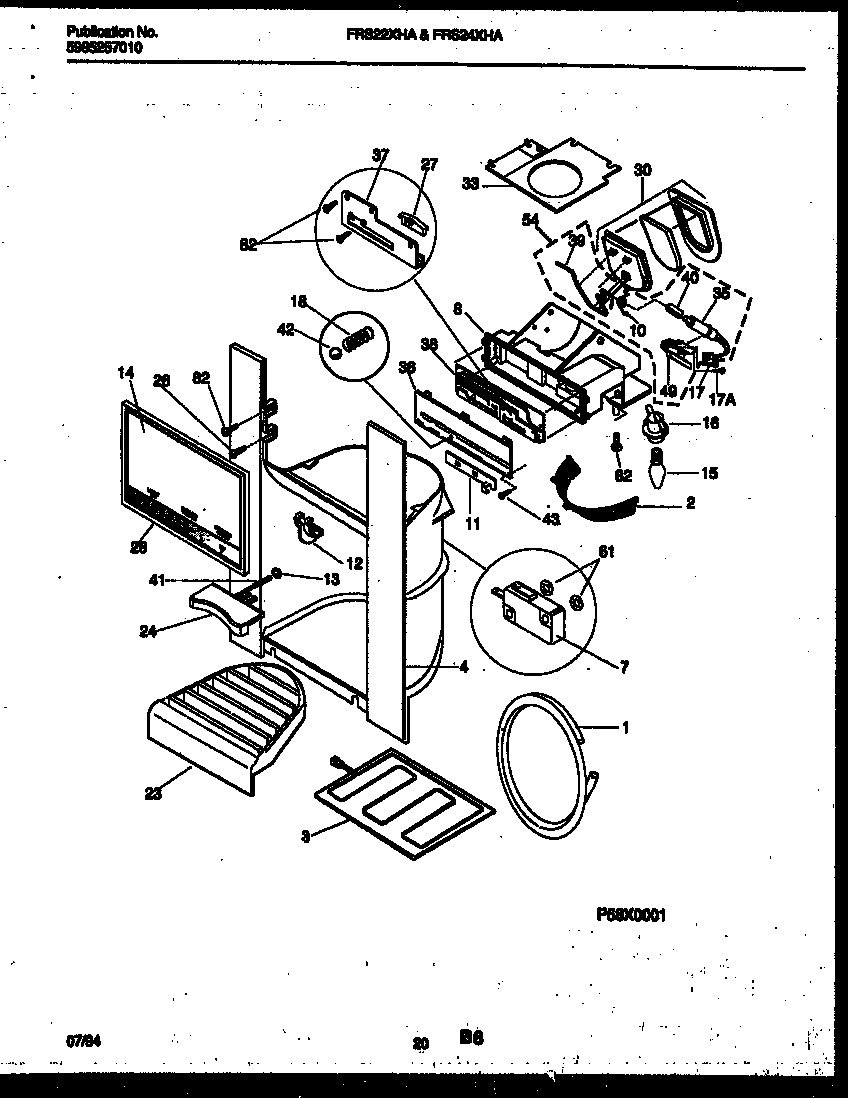

FRS22XHAD1 11 – ICE DOOR, DISPENSER AND WATER TANKS

Products

Position	Product
1	WCI 215294101
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 215732111
3	WCI 215484300
4	WCI 5303298525
7A	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
7	WCI 218284800
8	WCI 215763501
10	WCI 218209800
11	WCI 215897500
12	WCI 215766502
13	WCI 215748101
14	WCI 215993002
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17A	WCI 215840700
17	WCI 215794400
18	WCI 215760200
23	WCI 5303297845
24	WCI 215766302
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	WCI 5303297847
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 215851100
35	WCI 218284700
36	WCI 215254400
37	WCI 215763400
38B	WCI 215631000
38C	WCI 215763900
38	WCI 215894603
38A	WCI 215630800
