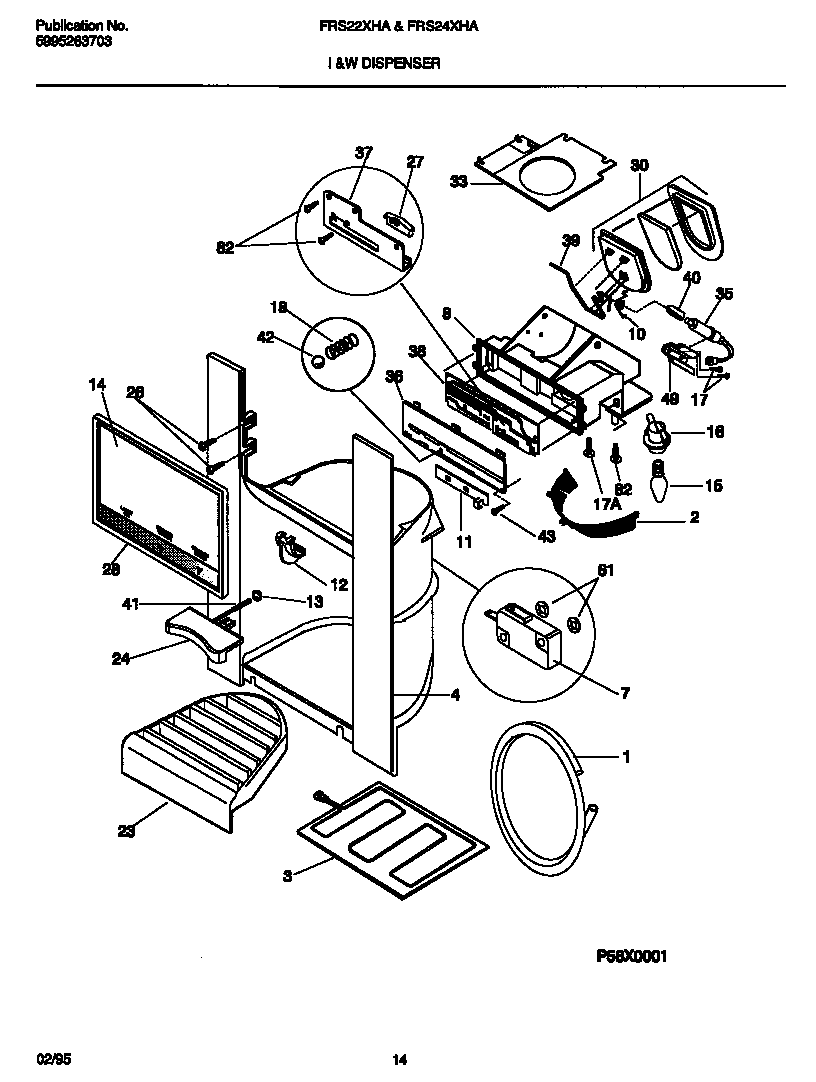

FRS22XHAD2 08 – I & W DISPENSER

Products

Position	Product
*37088	WCI 215781700
*37087	HEAT MOTOR KIT, 115V, INCLUDES ITEMS, 7,10, 15, 17, 35
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	WCI 215294101
2	WCI 215732111
3	WCI 215484300
4	WCI 5303298525
7	WCI 218284800
7	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
8	WCI 215763501
10	WCI 218209800
11	WCI 215897500
12	WCI 215766502
13	WCI 215748101
14	WCI 215993002
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17A	WCI 215840700
17A	WASHER-FLAT
18	WCI 215760200
23	WCI 5303297845
24	WCI 215766302
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	WCI 5303297847
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 215254400
37	WCI 215763400
38	WCI 215894603
38	WCI 215763900
38	WCI 215631000
38	WCI 215630800
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
42	WCI 215756000
43	WCI 215760300
49	WCI 215794000
61	WCI 215766000
82	WCI 215296300
