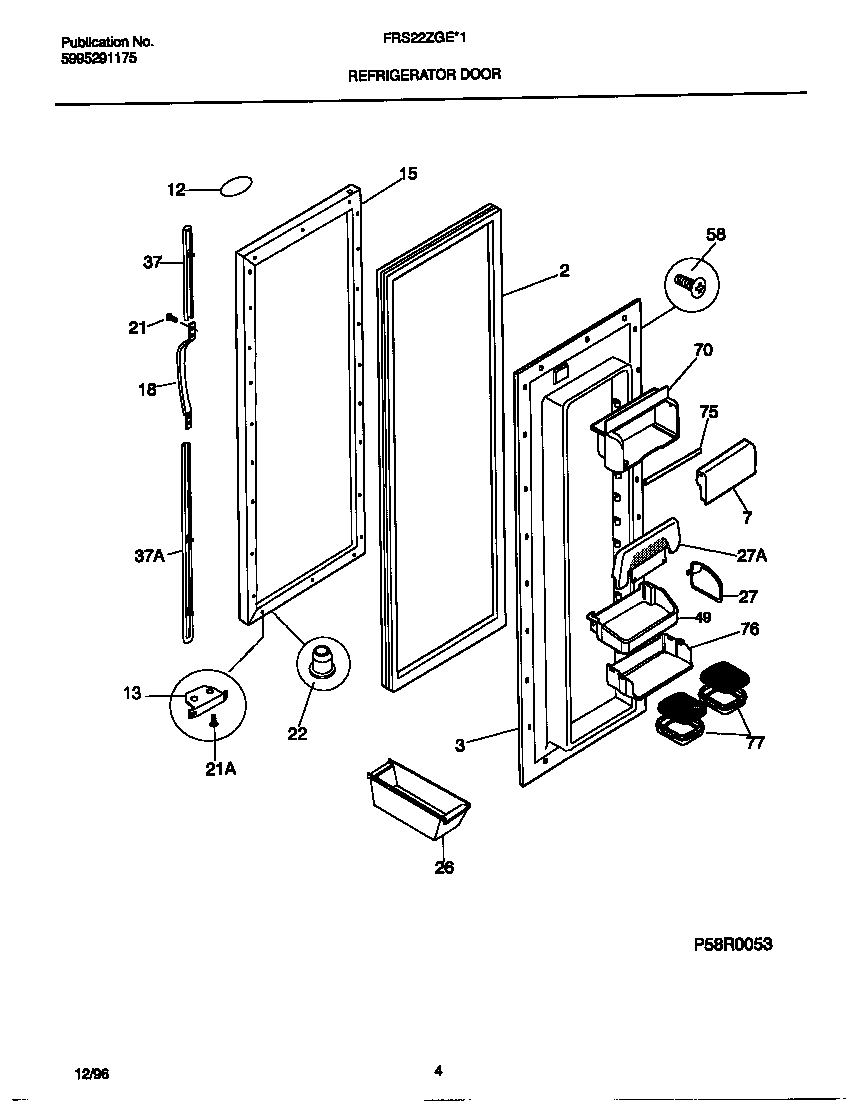

FRS22ZGEW1 03 – REFRIGERATOR DOOR

FRS22ZGEW1 03 – REFRIGERATOR DOOR

Written by

in

FRS22ZGEW1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*75722INSULATION
2WCI 215734314
3WCI 215353101
7WCI 218383101
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364004
12WCI 215008604
13WCI 5303289522
15WCI 5303917498
18WCI 218025201
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27WCI 218370001
27WCI 218714201
37BWCI 215940700
37AWCI 215782300
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37CWCI 218676002
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
49WCI 218592311
58Screw,No.10 pan hd ,8-18 x .5
70WCI 218383201
75WCI 218431100
76WCI 218423800
77WCI 218423502
