  • FRS22ZGGB0 07 – COMPRESSOR

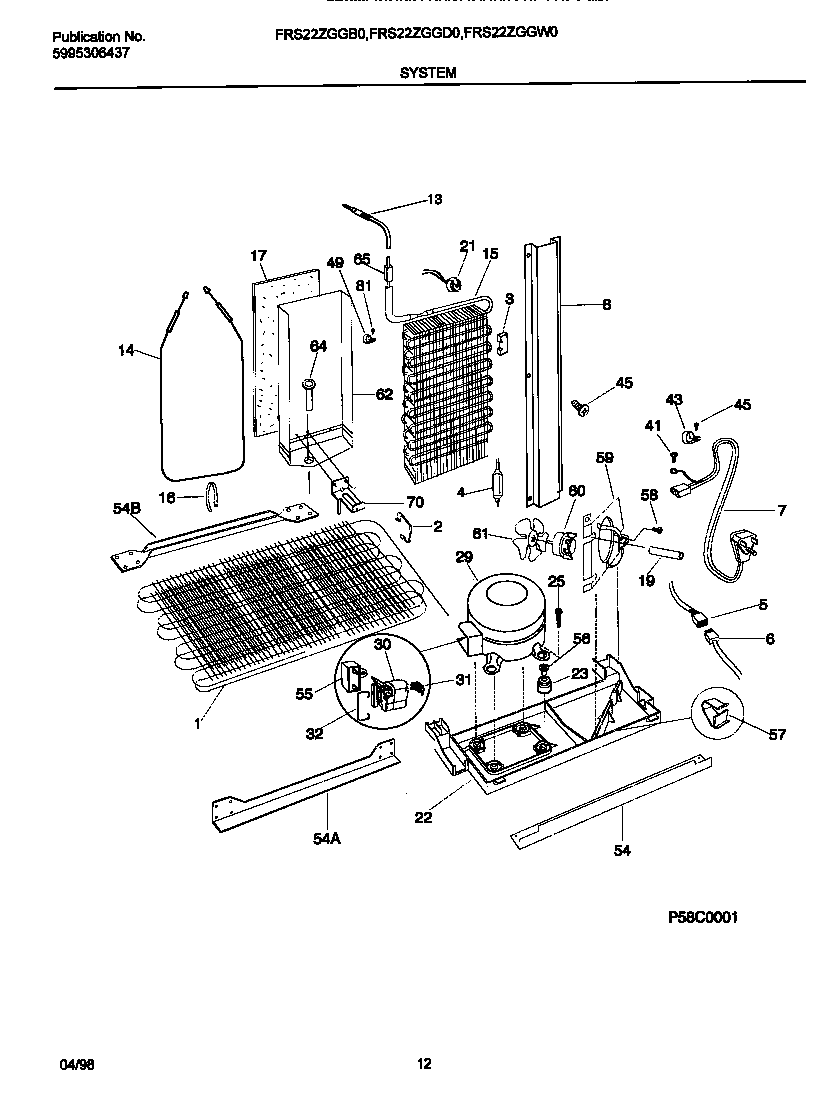

FRS22ZGGB0 07 – COMPRESSOR

FRS22ZGGB0 07 – COMPRESSOR

Products

PositionProduct
*39126WCI 215004800
*39115WIRING HARNESS,REFR CONTROLS
*391215304500008 Frigidaire Oven Screw
*39118WIRING HARNESS,FRZR CONTROLS
*39113SPACER-COND TUBE,BLACK
*39127WCI 5303917166
*39120TUBE-INLET (NOT ILLUSTRATED)
*39117WIRING HARNESS,FILTER HEATER
*391245304455852 Frigidaire Refrigerator Screw
*39123WCI 218769200
*39116WCI 218463600
*39114SPACER TUBE
*39125WCI 215004700
*39119SCREW,HEX HD SER WSHR ,8-18 X 0.375
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WIRING HARNESS,MACHINE COMPT
7WCI 215459201
8WCI 218803400
13WCI 215746800
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 216008904
31WCI 5303321892
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
55WCI 218764601
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60BWCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
