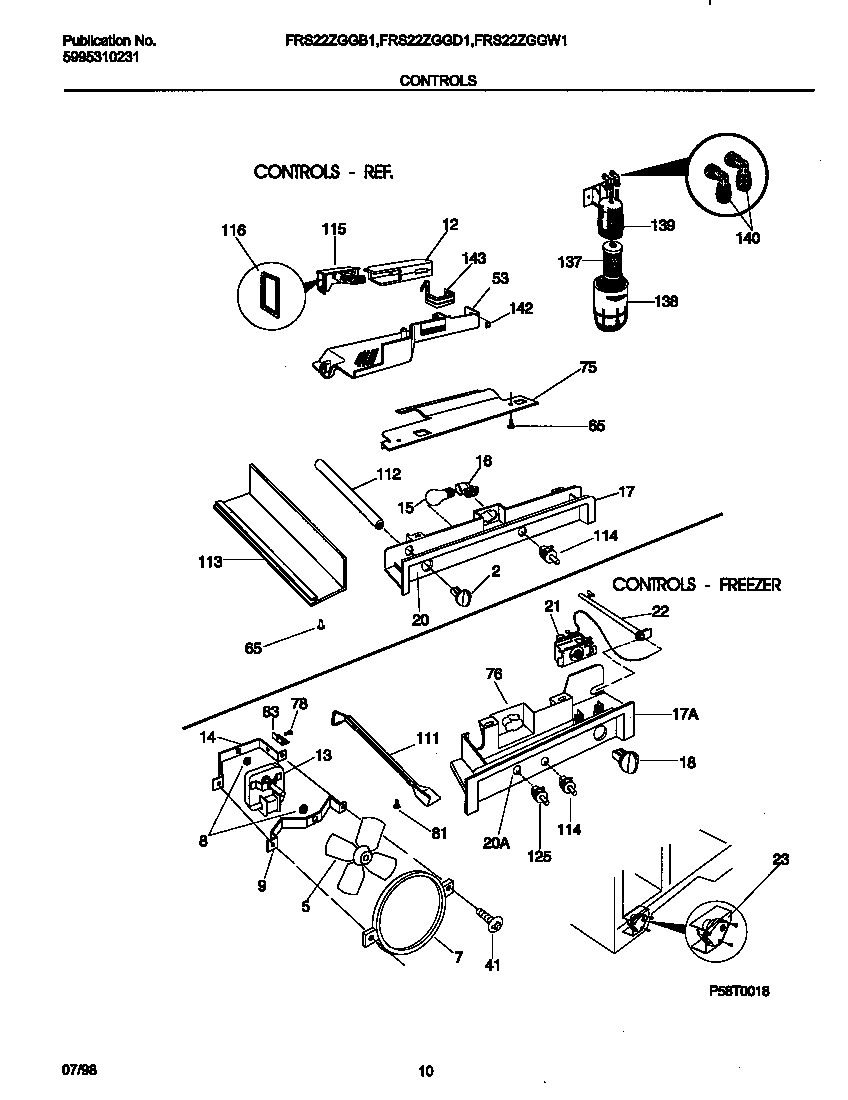

FRS22ZGGB1 06 – CONTROLS

Products

Position	Product
*08308	5304455649 Frigidaire Refrigerator Screw
*08307	COVER-DEFROST TIMER, TOP
*08306	WCI 218731102
*08304	215474201 Frigidaire Refrigerator Washer
*08309	SHIELD-DEFROST TIMR,BTM
*08305	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*08310	218710300 Frigidaire Refrigerator Water Filter Wrench
*08311	WIRING HARNESS,FILTER HEATER
2	WCI 5303307883
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215809600
13	WCI 215426200
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	WCI 218468701
17	CONTROL BOX, FRZR
18	WCI 5303307882
20	WCI 5303307888
20	WCI 5303307884
21	WCI 5303300027
22	WCI 5303319683
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
53	WCI 215809508
65	WCI 5303001361
75	WCI 218465101
76	WCI 218225800
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303289024
112	WCI 215277101
113	COVER – DMPR ROD EXT
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011503
116	WCI 215011400
137	WCI 215334201
138B	WCI 218657401
139	HOUSING-WTR FILTER
140	WCI 218518700
142	WCI 218657701
143	WCI 218696700
