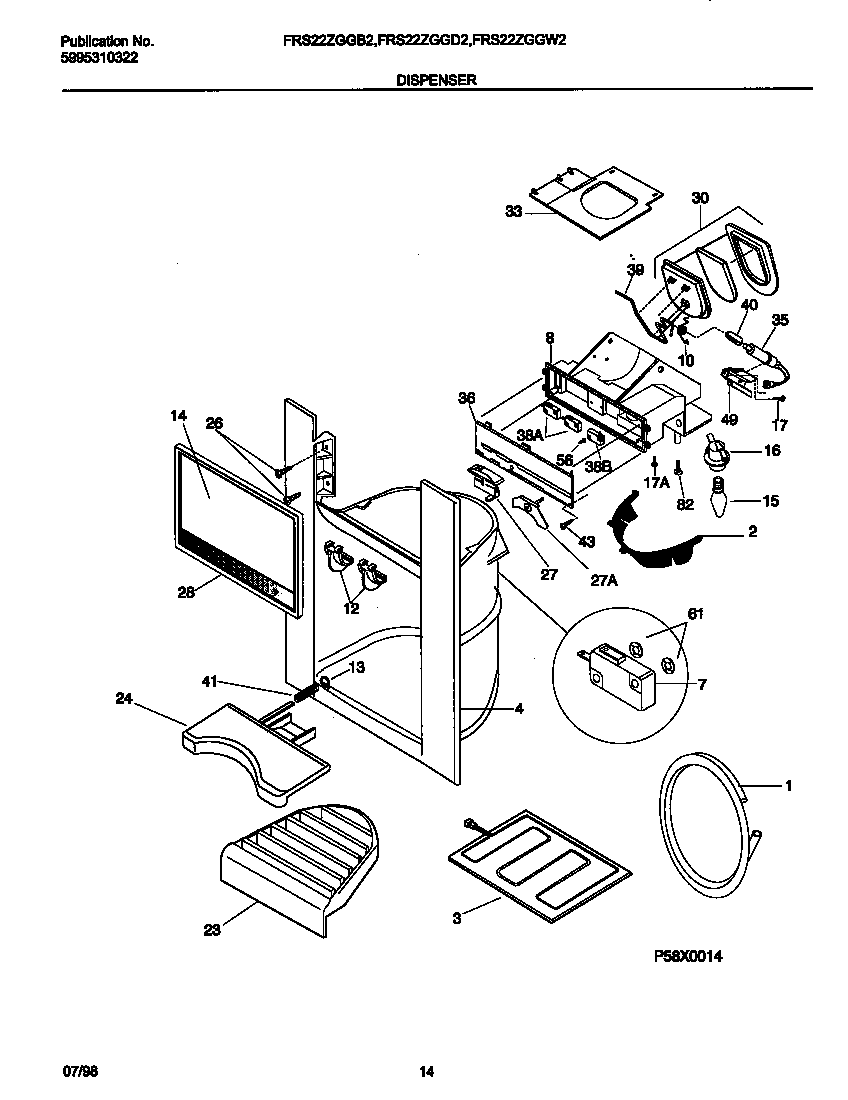

FRS22ZGGD2 08 – ICE DISPENSER

Products

Position	Product
*52487	TUBE-WATER INLET,FILTER ,TO FILTER VALVE,W/ELBOW
*52488	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
*52491	WCI 215781700
*52492	WCI 218432502
*52489	WCI 215294101
*52490	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
*52493	WCI 5300460947
2	WCI 218505302
3	WCI 215484300
4	WCI 218432102
7	WCI 218284800
8	WCI 218505201
10	WCI 218209800
12	WCI 215766502
13	WCI 215748101
14	WCI 218416161
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17A	WCI 215840700
17B	WASHER-FLAT
23	WCI 5303297845
24	WCI 218796502
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218700602
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218849801
35	WCI 218740003
36	WCI 218432400
38	WCI 218479900
38	241689106 Frigidaire Refrigerator Micro Switch
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
