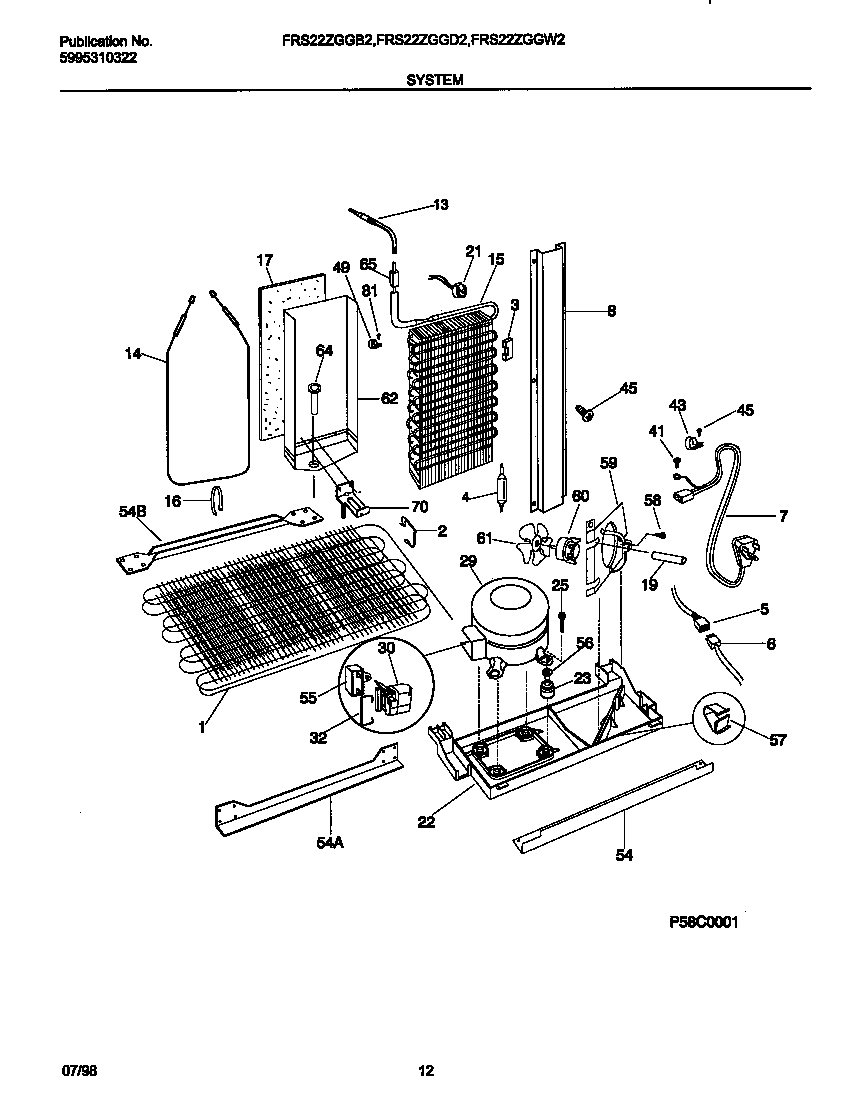

FRS22ZGGW2 07 – SYSTEM

FRS22ZGGW2 07 – SYSTEM

Written by

in

FRS22ZGGW2 07 – SYSTEM

Products

PositionProduct
*52485WCI 215004800
*52474WIRING HARNESS,REFR CONTROLS
*524805304500008 Frigidaire Oven Screw
*52477WIRING HARNESS,FRZR CONTROLS
*52472SPACER-COND TUBE,BLACK
*52479TUBE-INLET (NOT ILLUSTRATED)
*52476WIRING HARNESS,FILTER HEATER
*524835304455852 Frigidaire Refrigerator Screw
*52482WCI 218769200
*52473SPACER TUBE
*52478SCREW,HEX HD SER WSHR ,8-18 X 0.375
*52484WCI 215004700
*52475WCI 218463600
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6Wiring Harness,w/valve diodes
7WCI 215459201
8WCI 218803400
13WCI 215746800
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 216008904
31WCI 5303321892
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289292
54WCI 5303289027
55WCI 218764601
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60BWCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
