FRS22ZGGW4 03 – REFRIGERATOR

FRS22ZGGW4 03 – REFRIGERATOR

Written by

in

FRS22ZGGW4 03 – REFRIGERATOR

Products

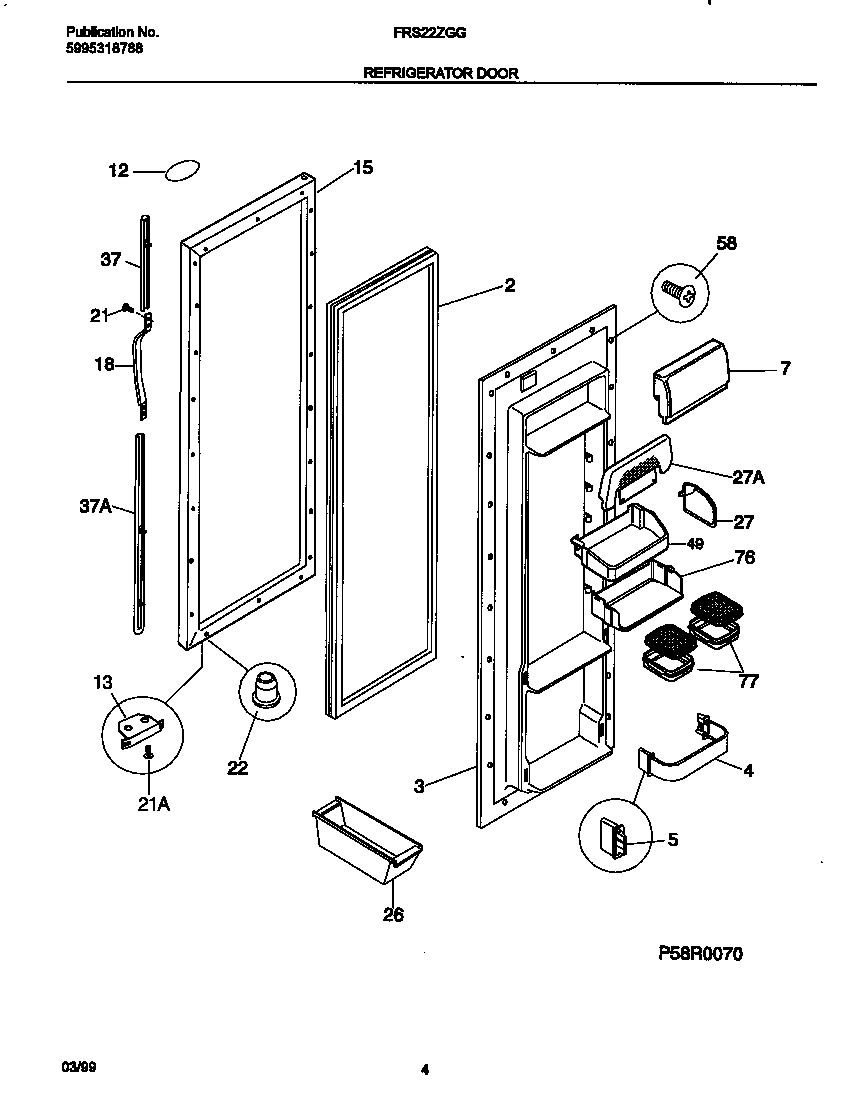

PositionProduct
*47005INSULATION
*47003WCI 215008604
*47004TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734314
3WCI 215390401
4WCI 218807018
5WCI 5303288950
7WCI 5304404909
12WCI 218364004
13WCI 5303289522
15WCI 5303917498
18WCI 218025201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
27WCI 218714201
37CWCI 218676003
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37BWCI 215940700
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37AWCI 215782300
49WCI 218592307
58218781101 Frigidaire Handle Screw
76WCI 218423700
77WCI 218423501
