FRS22ZGGW4 07 – SYSTEM

FRS22ZGGW4 07 – SYSTEM

Written by

in

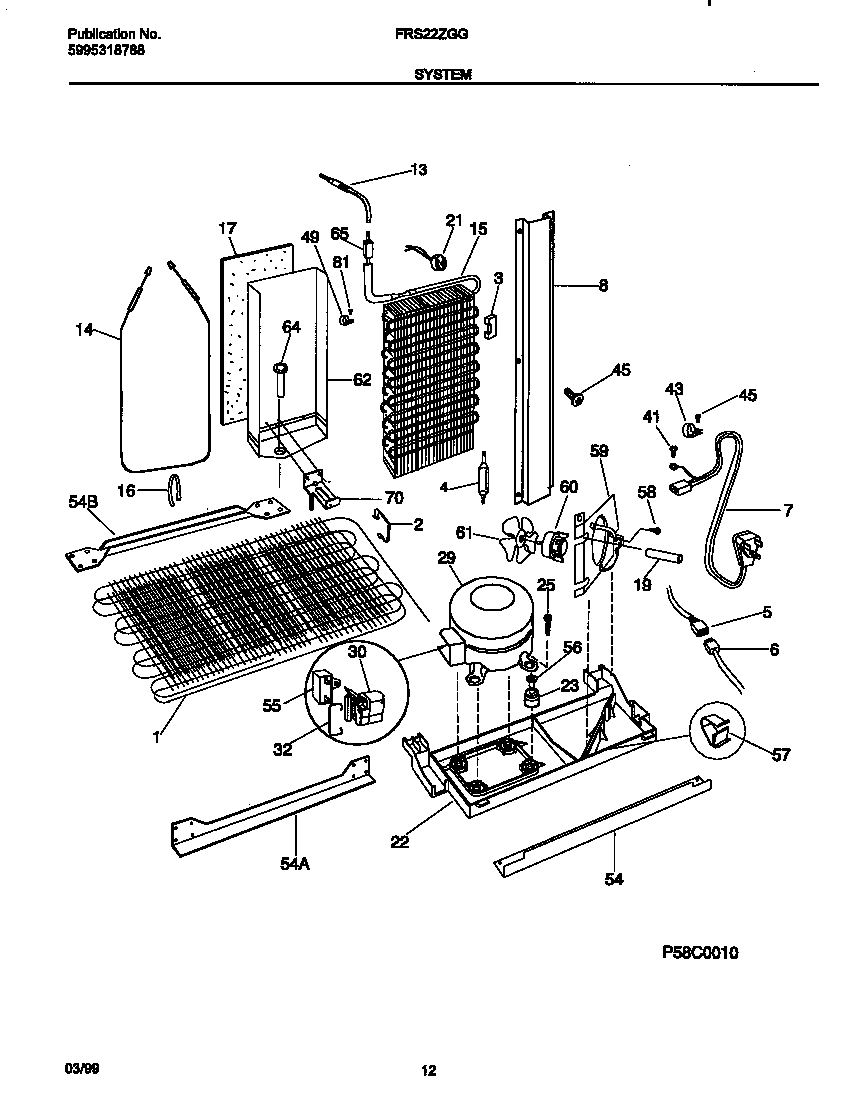

FRS22ZGGW4 07 – SYSTEM

Products

PositionProduct
*470415308000133 Frigidaire Refrigerator Clamp
*47037WIRING HARNESS,REFR CONTROLS
*47039WIRING HARNESS,FRZR CONTROLS
*47046WIRING HARNESS,FILTER HEATER
*47035SPACER-COND TUBE,BLACK
*47036SPACER TUBE
*47042WCI 218769200
*47043WCI 215732700
*47038WCI 218463600
*47045WCI 215004800
*47044WCI 215004700
*470405303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WCI 218896001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
41SCREW,HEX HD SER WSHR ,8-18 X 0.375
45B5304455651 Frigidaire Refrigerator Screw
45A5304455852 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
