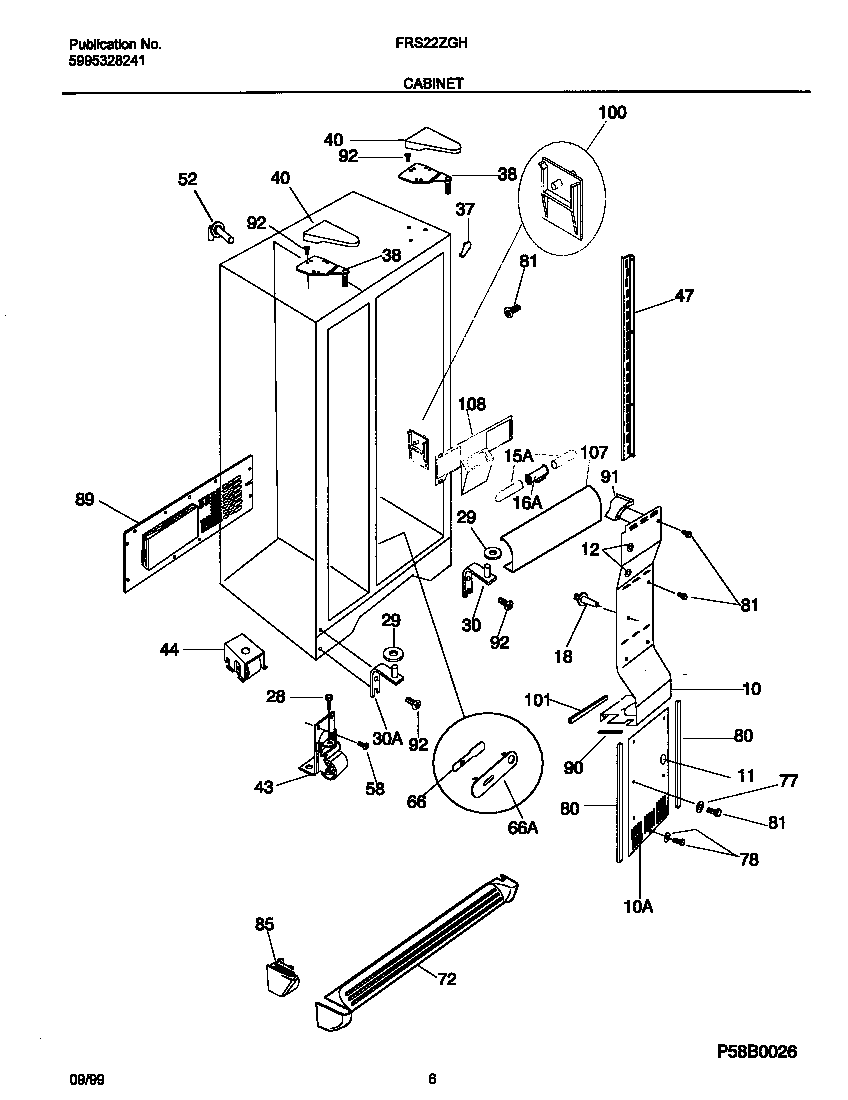

FRS22ZGHD2 04 – CABINET

FRS22ZGHD2 04 – CABINET

Written by

in

FRS22ZGHD2 04 – CABINET

Products

PositionProduct
*83296TOUCH, UP PAINT, ALMOND (NI)
*83292SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*83293WCI 5303322647
*83288SUPPORT-AIR DUCT CVR,1.83“ LONG
*83287NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*83291WCI 218730800
*83290WCI 218871201
*83294WCI 218902101
*83289WCI 215314301
10AWCI 215637401
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321082
38BWCI 218215223
38AWCI 218215221
40WCI 5303318774
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
107WCI 218835901
108WCI 218834202
