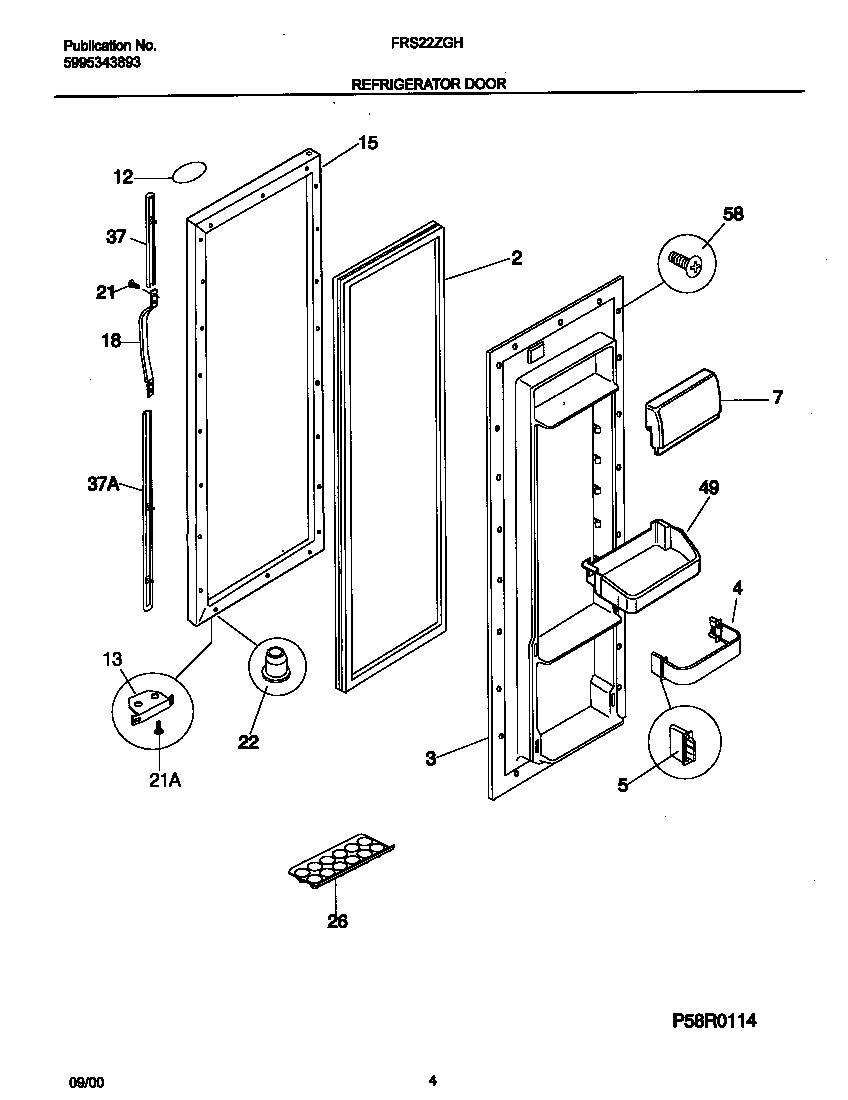

FRS22ZGHD5 03 – REFRIGERATOR DOOR

FRS22ZGHD5 03 – REFRIGERATOR DOOR

Written by

in

FRS22ZGHD5 03 – REFRIGERATOR DOOR

Products

PositionProduct
*48405INSULATION
*48402LABEL-NAMEPLATE,ALMOND
*48404TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734314
3WCI 215390401
4WCI 218807018
5WCI 5303288950
7WCI 5304404909
12WCI 218364005
13WCI 5303289522
15WCI 5303918227
18WCI 218025204
215304455650 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26215817806 Frigidaire Refrigerator Egg Tray
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37AWCI 215782300
37BWCI 218676003
49WCI 218592307
58218781101 Frigidaire Handle Screw
