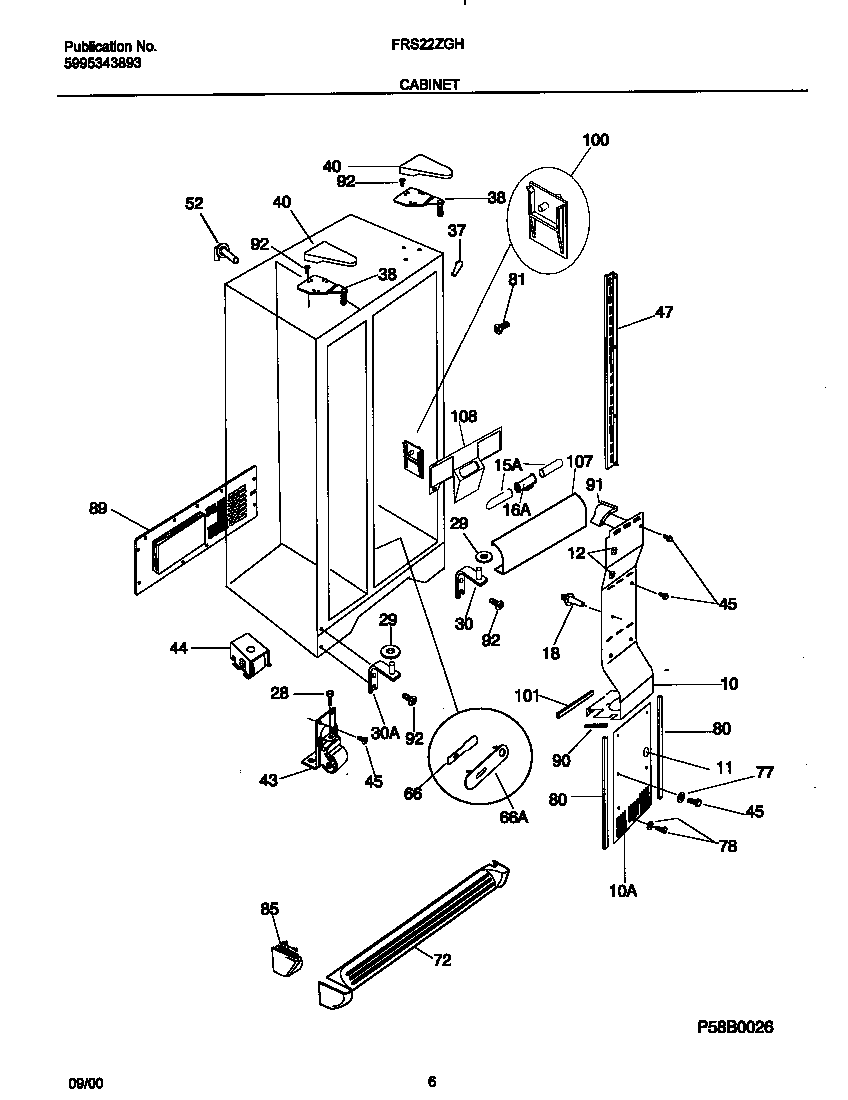

FRS22ZGHD5 04 – CABINET

FRS22ZGHD5 04 – CABINET

Written by

in

FRS22ZGHD5 04 – CABINET

Products

PositionProduct
*48406NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*48408WCI 215598900
*48409WCI 218871201
*48414WCI 218902101
*48412SCREW,HEX HD SER WSHR ,8-18 X 0.375
*48411SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*48413WCI 5303322647
*48407SUPPORT-AIR DUCT CVR,1.83“ LONG
*48416TOUCH, UP PAINT, ALMOND (NI)
*48410WCI 218979701
10WCI 215637602
10AWCI 215637402
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 218993701
30AWCI 218993901
30BWCI 218979601
37WCI 5303321082
38AWCI 218215249
38BWCI 218215251
40WCI 5303318774
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
107WCI 218835901
108WCI 218834202
