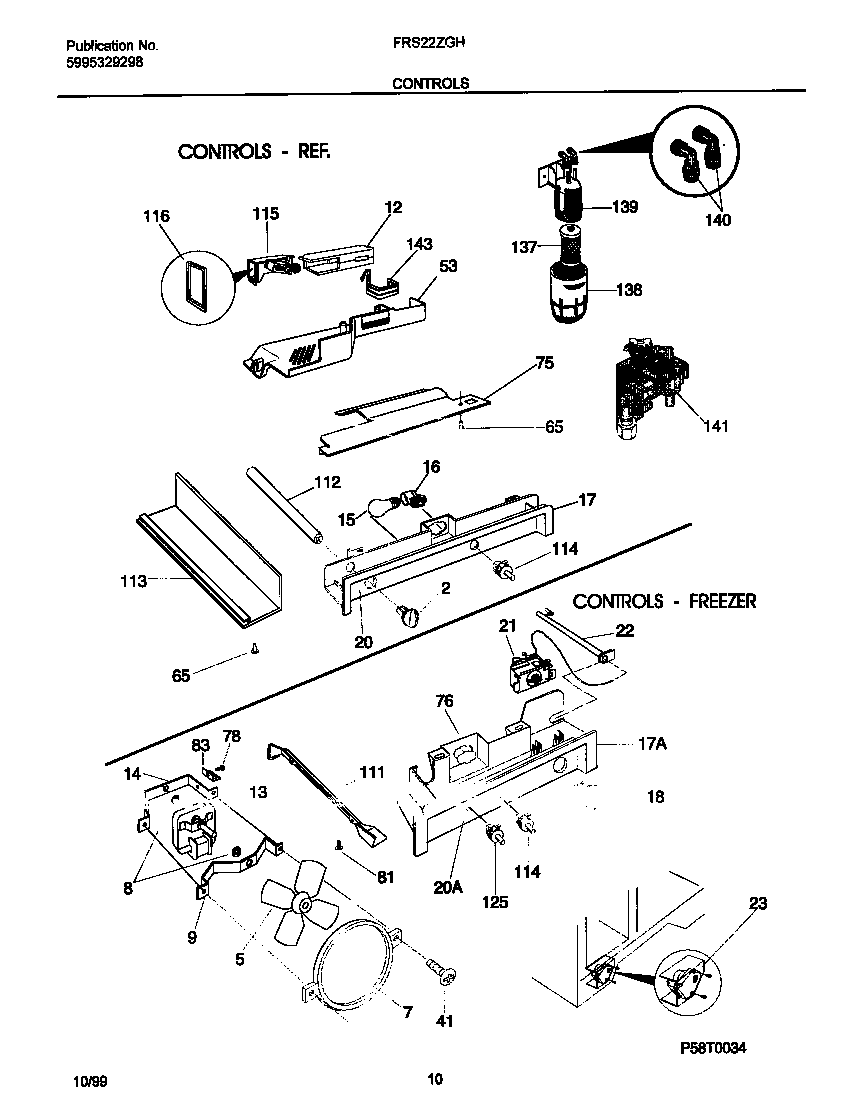

FRS22ZGHW3 06 – CONTROLS

FRS22ZGHW3 06 – CONTROLS

Written by

in

FRS22ZGHW3 06 – CONTROLS

Products

PositionProduct
*654255304455649 Frigidaire Refrigerator Screw
*65424COVER-DEFROST TIMER, TOP
*65423WCI 218731102
*65426SHIELD-DEFROST TIMR,BTM
*65427NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*65422215474201 Frigidaire Refrigerator Washer
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 218468701
17ACONTROL BOX, FRZR
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
18WCI 5303307882
20WCI 5303307888
20WCI 5303307884
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809511
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
137WCI 215334201
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141A218832401 Frigidaire Water Inlet Valve
141BScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143AWCI 218696700
143BWIRING HARNESS,FILTER HEATER
