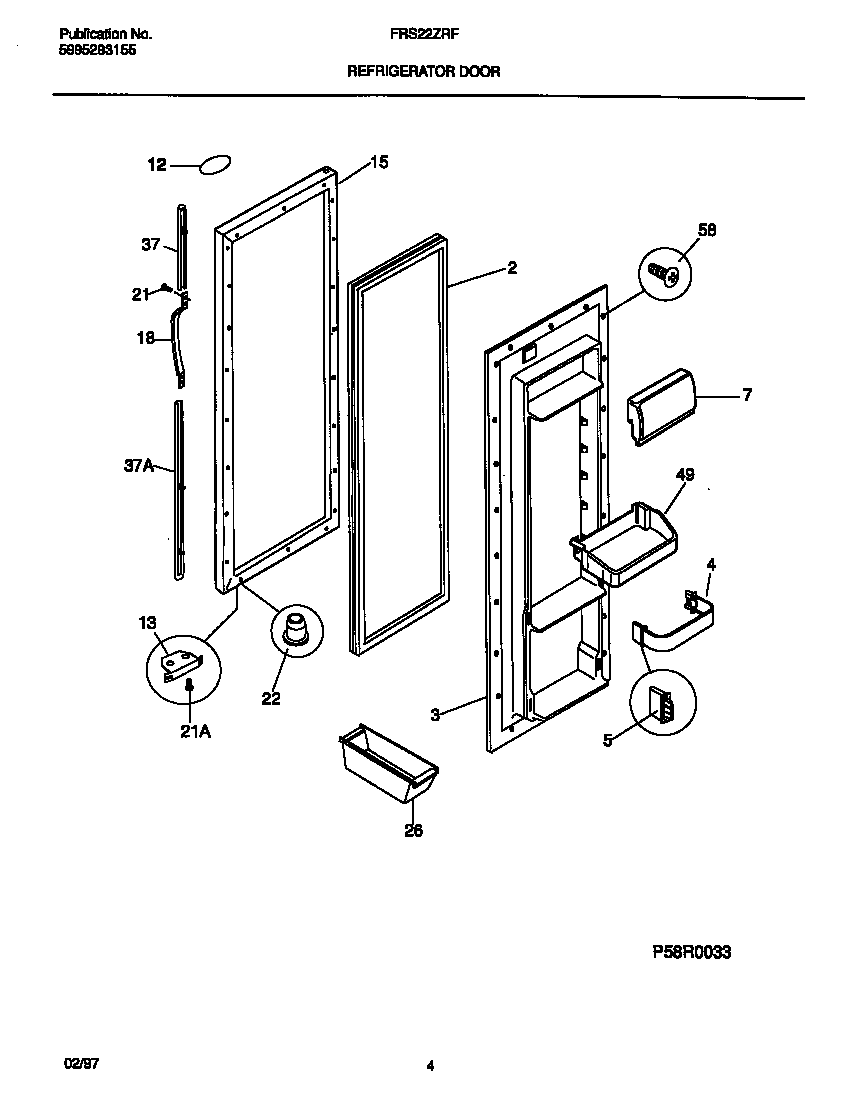

FRS22ZRFD0 03 – REFRIGERATOR DOOR

FRS22ZRFD0 03 – REFRIGERATOR DOOR

Written by

in

FRS22ZRFD0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*38282INSULATION
2WCI 215734304
3WCI 215390401
4WCI 215120401
5WCI 5303288950
7WCI 5303308608
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
12WCI 215008602
13WCI 5303289522
15WCI 218069311
18WCI 215826404
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
37WCI 215867073
37CWCI 218676001
37WCI 215867074
37BWCI 215940700
37AWCI 215782300
49WCI 218592308
58Screw,No.10 pan hd ,8-18 x .5
