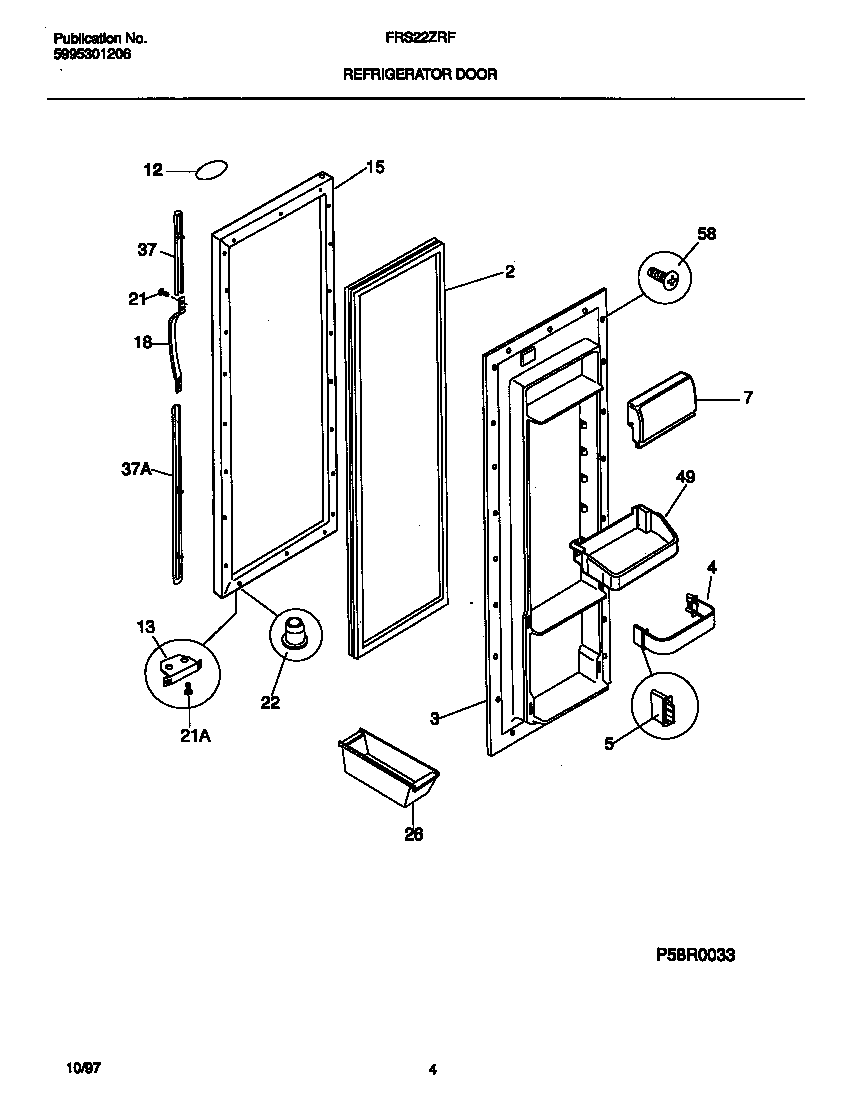

FRS22ZRFW2 03 – REFRIGERATOR DOOR

FRS22ZRFW2 03 – REFRIGERATOR DOOR

Written by

in

FRS22ZRFW2 03 – REFRIGERATOR DOOR

Products

PositionProduct
*81562INSULATION
2WCI 215734314
3WCI 215390401
4WCI 218807011
5WCI 5303288950
7WCI 5303308608
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364004
12WCI 215008601
13WCI 5303289522
15WCI 218069301
18WCI 215826401
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
37AWCI 215782300
37CWCI 218676001
37BWCI 215940700
37WCI 215867053
37WCI 215867055
49WCI 218592308
58Screw,No.10 pan hd ,8-18 x .5
