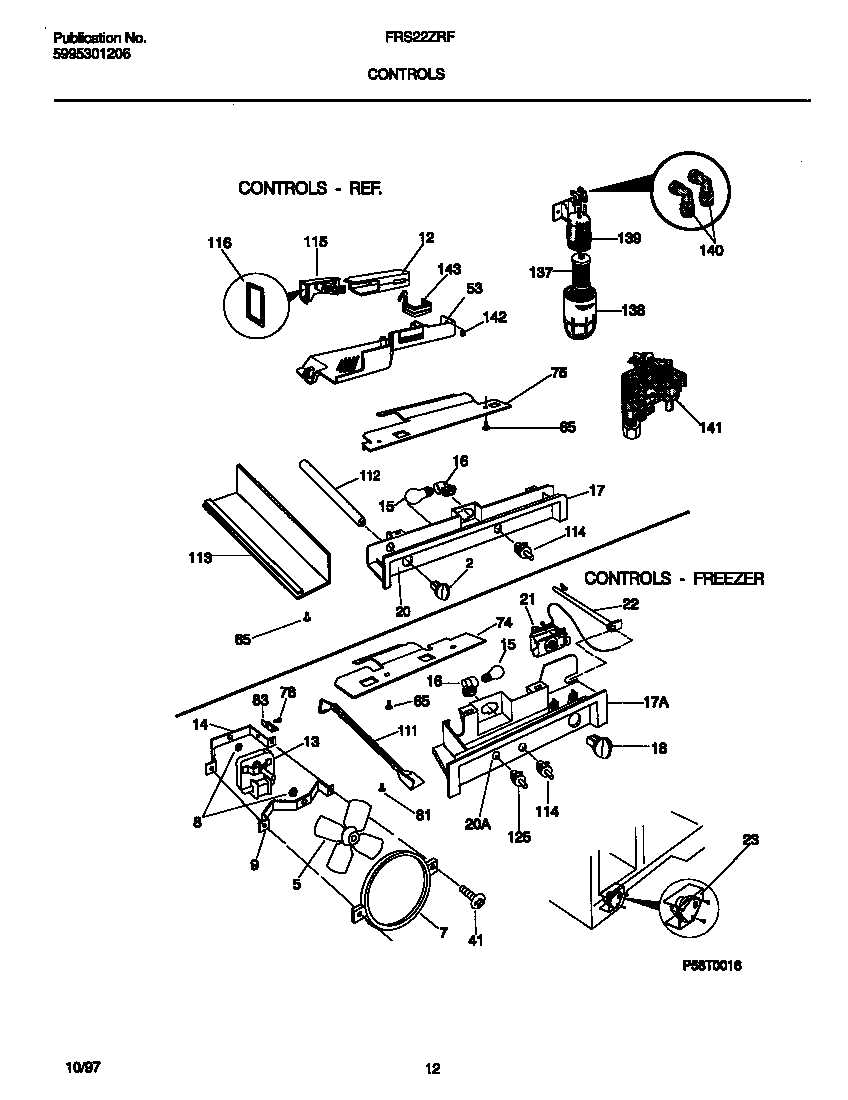

FRS22ZRFW2 06 – CONTROLS

FRS22ZRFW2 06 – CONTROLS

Written by

in

FRS22ZRFW2 06 – CONTROLS

Products

PositionProduct
*81571WIRING HARNESS,FILTER HEATER
*81570Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*81568SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*81569218710300 Frigidaire Refrigerator Water Filter Wrench
2WCI 5303308569
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13B215474201 Frigidaire Refrigerator Washer
13AWCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BOX – CONTROL, REFR
17CONTROL BOX, FRZR
18WCI 5303308568
20WCI 5303308610
20WCI 5303308611
21WCI 5303300027
22AWCI 5303319683
22BWCI 218731102
23DSHIELD-DEFROST TIMR,BTM
23CCOVER-DEFROST TIMER, TOP
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41A5308000039 Frigidaire Refrigerator Screw
53BWCI 215809508
53AWCI 215809506
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
125WCI 215334201
137WFCB WATER FILTER PURESOURCE 4"
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
