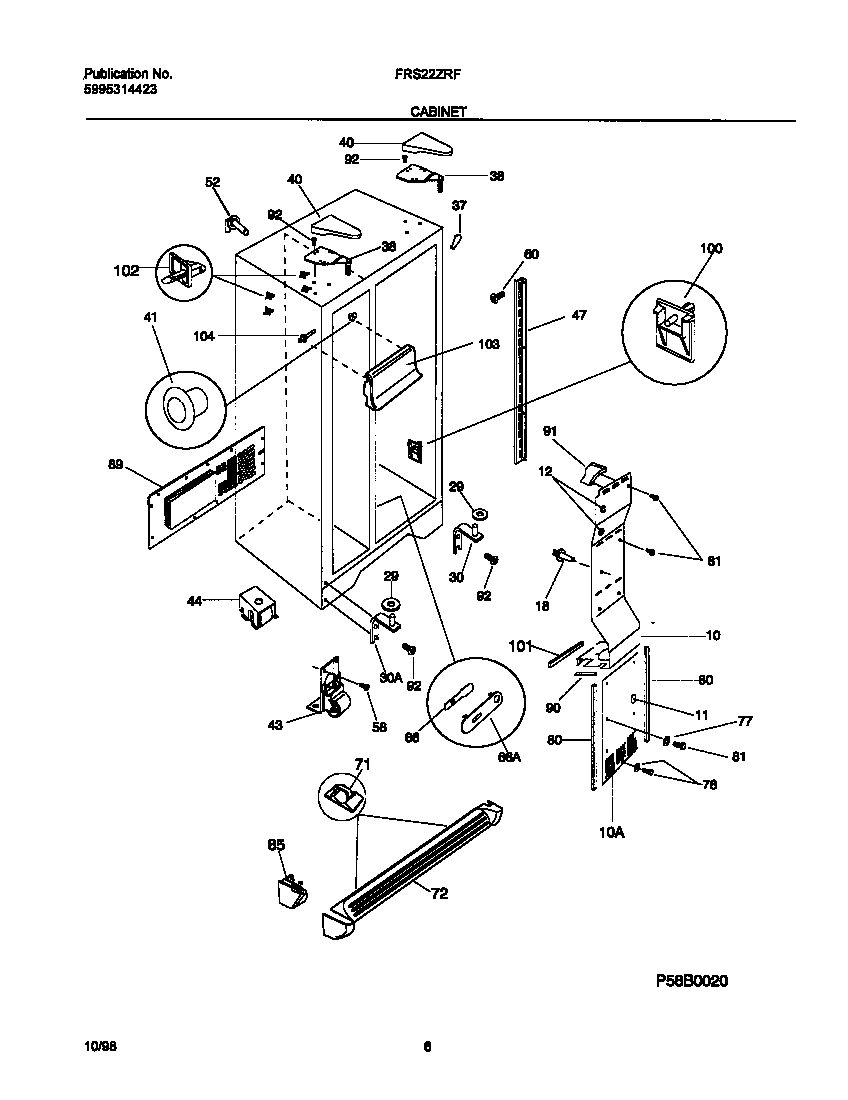

FRS22ZRFW3 04 – CABINET

FRS22ZRFW3 04 – CABINET

Written by

in

FRS22ZRFW3 04 – CABINET

Products

PositionProduct
*29487SUPPORT-AIR DUCT CVR,1.83“ LONG
*29493WCI 5303289062
*29490WCI 218730800
*29494SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*29496WCI 5303322647
*29488WCI 218871201
*29486NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*29499PLUG, BUTTON, CABINET LINER (NI)
*29495WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*29491WCI 218730900
*29489WCI 218730700
*294925304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*294985303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
29WCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
