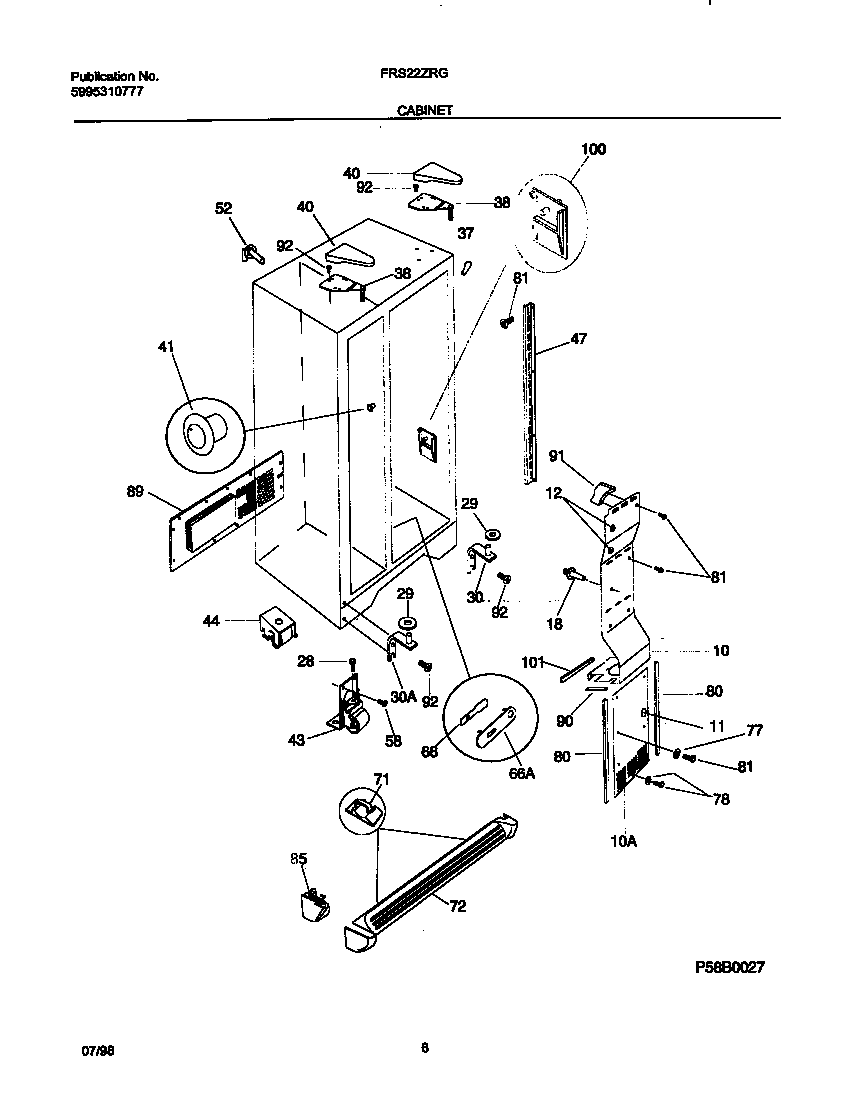

FRS22ZRGB1 04 – CABINET

FRS22ZRGB1 04 – CABINET

Written by

in

FRS22ZRGB1 04 – CABINET

Products

PositionProduct
*007755303321321 Frigidaire Refrigerator Black Touch-Up Paint
*00765WCI 218871201
*00768WCI 218730900
*00771SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*00764SUPPORT-AIR DUCT CVR,1.83“ LONG
*00769NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*00777PLUG, BUTTON, CABINET LINER (NI)
*00776WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*00772WCI 5303322647
*00767WCI 218730800
*00766WCI 218730700
*007705304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303321083
38WCI 218215216
38WCI 218215214
40WCI 5303323268
41WCI 5303015609
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WCI 5303015216
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
90WCI 215022602
91WCI 218770000
92WCI 5303015479
101WCI 215305702
