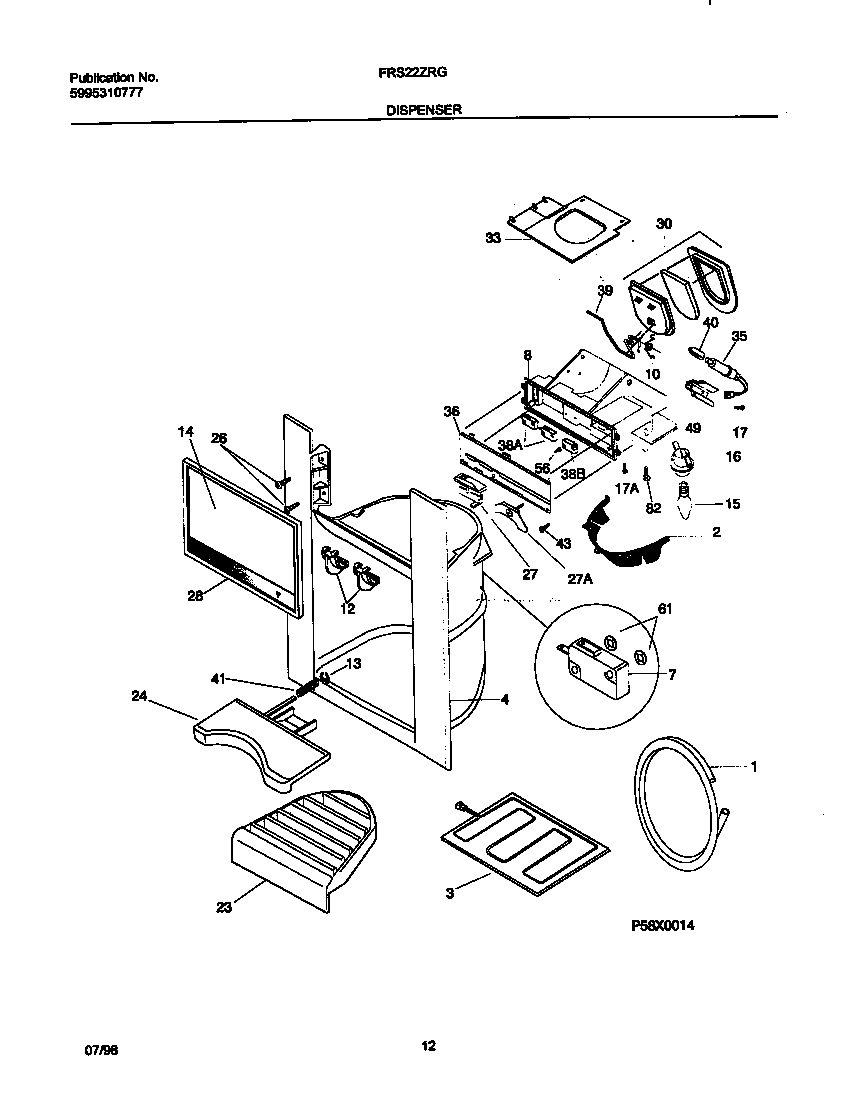

FRS22ZRGB1 07 – ICE DISPENSER

FRS22ZRGB1 07 – ICE DISPENSER

Written by

in

FRS22ZRGB1 07 – ICE DISPENSER

Products

PositionProduct
*00802WCI 218769200
*00799TUBE-INLET (NOT ILLUSTRATED)
*00801WCI 5303013199
*00795WIRING HARNESS,REFR CONTROLS
*00796WIRING HARNESS,FILTER HEATER
*008045304455852 Frigidaire Refrigerator Screw
*00798SCREW,HEX HD SER WSHR ,8-18 X 0.375
*00803WCI 5301341713
*008005304500008 Frigidaire Oven Screw
*00806WCI 215004800
*00805WCI 215004700
*00797WIRING HARNESS,FRZR CONTROLS
*00793SPACER-COND TUBE,BLACK
*00794SPACER TUBE
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6Wiring Harness,w/valve diodes
7WCI 215459201
8WCI 218803400
13WCI 215746800
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
16WCI 5308015310
17WCI 5303289496
19WCI 218631200
21WCI 5316269013
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 216008904
31WCI 5303321892
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 5303015343
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
55WCI 218764601
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
